OMRON XS2F-D521-KG0-A XS2F-D521-KG0-A XS2F0445H XS2FD521KG0A OMRON Sensor cable, M12 straight female connector, 5-pole, A-coded, s.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

XS2F-D521-KG0-A XS2F0445H XS2FD521KG0A OMRON Sensor cable, M12 straight female connector, 5-pole, A-coded, s..

XS2F-D521-KG0-A

XS2F0445H

XS2FD521KG0A

OMRON

1 Pcs.

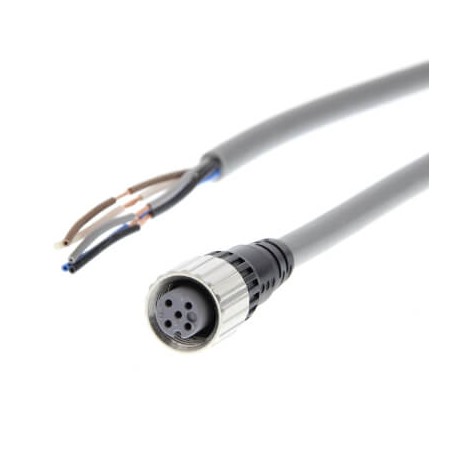

Sensor cable, M12 straight female connector, 5-pole, A-coded, standard PVC cable, IP67, 15 m Sensor cable, M12 straight socket (female), 5-poles, A coded, PVC standard cable, IP67, 15 m

Automation > Sensor-actuator patch cord
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron XS2F-D521-KG0-A sensor cable provides reliable signal transmission in automated industrial environments, featuring a straight M12 female connector on one end and a free conductor end for custom terminations. Cable assemblies of this type are widely utilized to link field devices, instrumentation, and control peripherals directly to junction boxes or I/O modules.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of electrical connection, field-sided (EF005525): M12
  • Cable type (EF000081): Multi-core
  • Colour cable sheath (EF008249): Grey
  • Degree of protection (IP) (EF005474): IP67
  • Type of plug-in contact, field sided (EF006269): Female (bus)
  • Positioning cable feed, field-sided (EF005928): Straight
  • Material of contact surface (EF004020): Gold
  • Material of cable sheath (EF004136): Polyvinyl chloride (PVC)
  • Type of electrical connection, box-sided (EF005524): Free conductor end
  • Screened (EF000881): No
  • Halogen free (EF000025): No
  • Vulcanize (EF004115): No
  • With LED indication (EF005950): No
  • Continuity resistance (EF003992): 40 mOhm
  • Rated voltage (EF000228): 250 V
  • Cable length (EF000536): 15 m

More info

▲
UsageCable with connectorConnector 1M12 straight socketConnector 2Open endsNumber of pin contact5Cable specificationsPVCCable length15 mColorGreyColor coverGreyMaterial nutBrassLED indicator
