View larger
Images are for illustrative purposes only. Please refer to data sheet for details
XS2F-A422-JB0-F XS2F0610H XS2FA422JB0F OMRON M12 cable, right Angle AC 2hilos 10m Retard. Fire
XS2F-A422-JB0-F
XS2F0610H
XS2FA422JB0F
OMRON
1 Pcs.
M12 cable, right Angle AC 2hilos 10m Retard. Fire
M12 with 2-wire AC Angled Cable 10m Retard. Fire

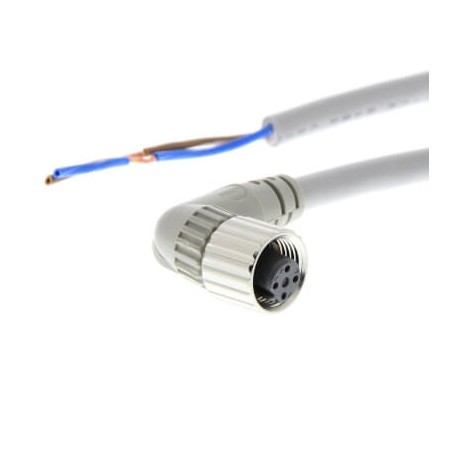

Sensor cable, M12 right-angle socket (female), 4-poles, 2-wires (3 - 4), B coded, PVC fire-retardant robot cable, IP67, 10 m
Automation > Sensor-actuator patch cord
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
UsageCable with connectorConnector 1M12 right-angle socketConnector 2Open endsNumber of pin contact2Cable specificationsPVCCable length10 mFeaturesFire retardant, RoboticColorGreyColor coverGreyMaterial nutBrassLED indicator
| Feature Name | Feature Value |
|---|---|
| Type of electrical connection, field-sided (EF005525) | M12 |
| Cable type (EF000081) | Multi-core |
| Colour cable sheath (EF008249) | Grey |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of plug-in contact, field sided (EF006269) | Female (bus) |
| Positioning cable feed, field-sided (EF005928) | Right-angled |
| Material of contact surface (EF004020) | Nickel/gold |
| Material contact body (EF008248) | CuZn |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Screened (EF000881) | No |
| Halogen free (EF000025) | No |
| Vulcanize (EF004115) | No |
| With LED indication (EF005950) | No |
| Continuity resistance (EF003992) | 40 mOhm |
| Rated voltage (EF000228) | 250 V |
| Cable length (EF000536) | 10 m |
| Rated current In (EF008250) | 4 A |
| Number of poles (EF001391) | 2 |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -25 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
