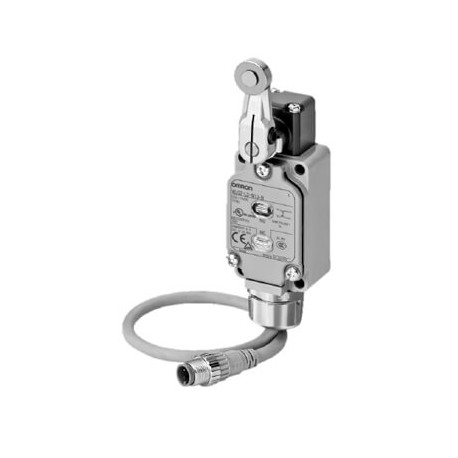

WLCA2-LDK13-N WLN 0138M WLCA2LDK13N OMRON Limit switch, roller lever: standard, LED indicator, DPDB, 3A, dir..
WLCA2-LDK13-N
WLN 0138M
WLCA2LDK13N
OMRON
1 Pcs.
Automation > End switch
WL
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An electromechanical limit switch provides reliable position sensing and machine control by translating physical actuator movement into electrical signals for industrial automation setups. The Omron WLCA2-LDK13-N incorporates a standard roller lever and an integrated LED indicator, making it well-suited for tracking travel limits and operational statuses on production machinery, machine tools, and assembly lines.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Degree of protection: IP67
- Rated frequency: 50/60 Hz
- Insulation resistance: 100 MΩ min. (at 500 VDC)
- Dielectric strength: 2,200 VAC
More info
▲- Improved durability and performance
- Reduced part numbers
- Easy wiring
- Direct and pre-wiring
- Ground terminal models are approved by EN and IEC and bear the CE marking
- UL,CSA
Specifications & ordering info
Ordering Information
DPDB1 | Screw terminal (Pg13,5 conduit with ground terminal)2 | ||||
Specifications
Characteristics
Durability3 | 15,000,000 operations min.4 | |
750,000 operations min.5 | ||
25 mΩ max. (initial value for the built-in switch when tested alone) | ||
-10 to 80°C (with no icing)6 | ||
Note: 1. The above figures are initial values.
2. The figures in parentheses for dielectric strength are those for the highsensitivity overtravel models.
Ratings
2.Models with screw terminals with M20 conduit instead of PG13.5 are available. Contact your OMRON representative.
3.The values are calculated at an operating temperature of 5 to 35°C and an operating humidity of 40% to 70% RH. Contact your OMRON sales representative for more detailed information on other operating environments.
4.Durability is 1,000,000 operations min. for high-sensitivity models. 500,000 operations min. for weather-proof models.
