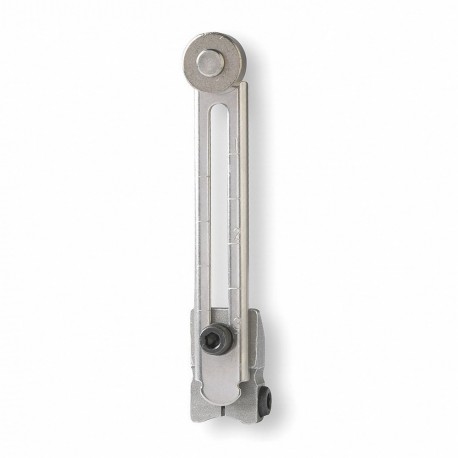

WL-2A100 WL 9103R WL2A100 OMRON Replacement head for the switch end of the series of WL: for use with roller..
WL-2A100
WL 9103R
WL2A100
OMRON
1 Pcs.
Automation > Accessories/spare parts for position switches
WL
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron replacement head for the switch end of the series of WL: for use with roller. (part number WL-2A100) serves as a mechanical actuator interface for limit switches deployed in automated production lines to detect position, presence, or travel limits. These heads translate physical movement into reliable electrical switching signals within heavy-duty control circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Adjustable roller lever: R25 to 89 mm, pretravel 15°±5°: DPDB, LED
- Roller lever R63, pre-travel 15°±5°: DPDB
- Adjustable rod lever: 25 to 140 mm, pretravel 15°±5°: DPDB, LED,
- Degree of protection: IP67
- Durability 3: Mechanical
- Electrical: 750,000 operations min. 5
- Operating speed: 1 mm/s to 1 m/s (in case of WLCA2-N)
- Operating frequency: Mechanical
- Electrical: 30 operations/minute min.
- Rated frequency: 50/60 Hz
- Insulation resistance: 100 MΩ min. (at 500 VDC)
- Contact resistance: 25 mΩ max. (initial value for the built-in switch when tested alone)
- Dielectric strength: Between terminals of the same polarity
- Between currentcarrying metal part and ground: 2,200 VAC (1,500 VAC), 50/60 Hz for 1 min
- Between each terminal and non-currentcarrying metal part: 2,200 VAC (1,500 VAC), 50/60 Hz for 1 min
- Vibration resistance: Malfunction
More info
▲- Improved durability and performance
- Reduced part numbers
- Easy wiring
- Direct and pre-wiring
- Ground terminal models are approved by EN and IEC and bear the CE marking
- UL,CSA
Specifications & ordering info
Ordering Information
DPDB1 | Screw terminal (Pg13,5 conduit with ground terminal)2 | ||||
Specifications
Characteristics
Durability3 | 15,000,000 operations min.4 | |
750,000 operations min.5 | ||
25 mΩ max. (initial value for the built-in switch when tested alone) | ||
-10 to 80°C (with no icing)6 | ||
Note: 1. The above figures are initial values.
2. The figures in parentheses for dielectric strength are those for the highsensitivity overtravel models.
Ratings
2.Models with screw terminals with M20 conduit instead of PG13.5 are available. Contact your OMRON representative.
3.The values are calculated at an operating temperature of 5 to 35°C and an operating humidity of 40% to 70% RH. Contact your OMRON sales representative for more detailed information on other operating environments.
4.Durability is 1,000,000 operations min. for high-sensitivity models. 500,000 operations min. for weather-proof models.
