V509-W016D 5M V5091008M V509W016D5M OMRON Cable PC connection 5m
V509-W016D 5M
V5091008M
V509W016D5M
OMRON
1 Pcs.
Automation > Accessories/spare parts for sensor technology
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A V509-W016D 5M PC connection cable from Omron provides reliable data transfer between industrial barcode readers and host controllers. Communication cables link hardware components across factory floor networks to maintain continuous data flow and system synchronization. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Barcode Readers: Cable output
- Round DIN connector: V500-R521C2
- ID Link Unit (sold separately): V700-L12
- Cables (sold separately): SYSMAC D-sub 9-pin cable, 0.8 m
- SYSMAC D-sub 9-pin cable, 5 m: V509-W016
- IBM PC/AT or compatible D-sub 9-pin cable, 0.8 m: V509-W011D
- IBM PC/AT or compatible D-sub 9-pin cable, 5 m: V509-W016D
- Applicable barcodes: Type of barcode
- Number of read digits: 32 digits max. (depends on bar width and read size)
- Reading performance 1: Resolution
- Contrast (PCS value): 0.45 min. (70% white reflectance min.)
- Reading distance: 60 to 270 mm (with 1.0-mm thin bar)
- Reading angle: Within 40° (including left and right margins)
- Skew angle: ±50° (excluding the upper 10° and lower 5° ranges)
- Pitch angle: ±25° (25° right and left)
- Light source: Red laser diode (wavelength: 650 nm)
More info
▲Fixed Barcode reader - Fast and easy

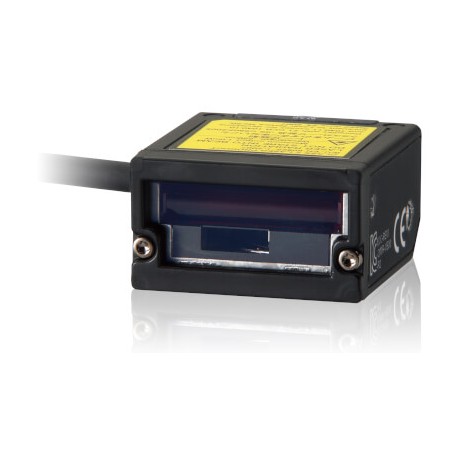

The V500-R2 is a laser based barcode reader for high speed processes. It can read codes on labels in any industry for traceability of parts or packages.
- High-speed reading at 1,000 Scans/second
- Reading codes even if they are partially dirty or missing
- Resistant against ambient light interference
Ordering information
Ratings and Specifications
Code 39, NW-7, ITF, STF (2 of 5 bars), Code 93, Code 128 (including EAN128), EAN/UPC (A and E) | ||
Reading | ||
The buzzer sounds when reading is successful. (The buzzer can be muted.) | ||
5 VDC ±10%2 | ||
Operating: 0 to 45°C, Storage: −10°C to 60°C (with no icing or condensation) | ||
Operating and storage: 30% to 85% (with no icing or condensation) | ||
12 to 100 Hz, 19.6 m/s2acceleration in X, Y, and Z directions for 3 hours each | ||
3,000 lx max. (fluorescent light; excluding inverter fluorescent lighting) | ||
