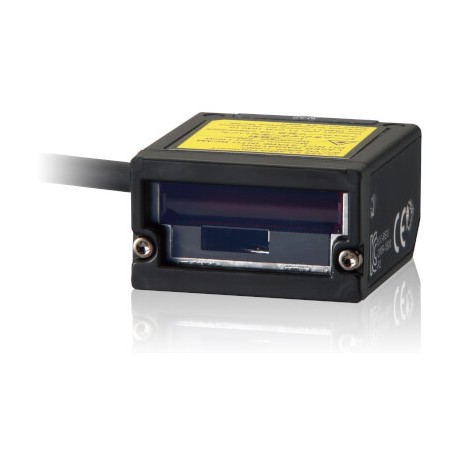

V509-W011D V5091009H V509W011D OMRON Cable connection PC 0.8 m
V509-W011D
V5091009H
V509W011D
OMRON
1 Pcs.
Automation > Accessories/spare parts for sensor technology
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron V509-W011D cable connection PC 0.8 m establishes reliable data communication between industrial identification hardware and host computer systems. Interface cables of this kind are commonly deployed in manufacturing environments to link barcode readers or vision processors to control networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Barcode Readers: Cable output
- Round DIN connector: V500-R521C2
- ID Link Unit (sold separately): V700-L12
- Cables (sold separately): SYSMAC D-sub 9-pin cable, 0.8 m
- SYSMAC D-sub 9-pin cable, 5 m: V509-W016
- IBM PC/AT or compatible D-sub 9-pin cable, 0.8 m: V509-W011D
- IBM PC/AT or compatible D-sub 9-pin cable, 5 m: V509-W016D
- Applicable barcodes: Type of barcode
- Number of read digits: 32 digits max. (depends on bar width and read size)
- Reading performance 1: Resolution
- Contrast (PCS value): 0.45 min. (70% white reflectance min.)
- Reading distance: 60 to 270 mm (with 1.0-mm thin bar)
- Reading angle: Within 40° (including left and right margins)
- Skew angle: ±50° (excluding the upper 10° and lower 5° ranges)
- Pitch angle: ±25° (25° right and left)
- Light source: Red laser diode (wavelength: 650 nm)
More info
▲Fixed Barcode reader - Fast and easy
The V500-R2 is a laser based barcode reader for high speed processes. It can read codes on labels in any industry for traceability of parts or packages.
- High-speed reading at 1,000 Scans/second
- Reading codes even if they are partially dirty or missing
- Resistant against ambient light interference
Ordering information
Ratings and Specifications
Code 39, NW-7, ITF, STF (2 of 5 bars), Code 93, Code 128 (including EAN128), EAN/UPC (A and E) | ||
Reading | ||
The buzzer sounds when reading is successful. (The buzzer can be muted.) | ||
5 VDC ±10%2 | ||
Operating: 0 to 45°C, Storage: −10°C to 60°C (with no icing or condensation) | ||
Operating and storage: 30% to 85% (with no icing or condensation) | ||
12 to 100 Hz, 19.6 m/s2acceleration in X, Y, and Z directions for 3 hours each | ||
3,000 lx max. (fluorescent light; excluding inverter fluorescent lighting) | ||
