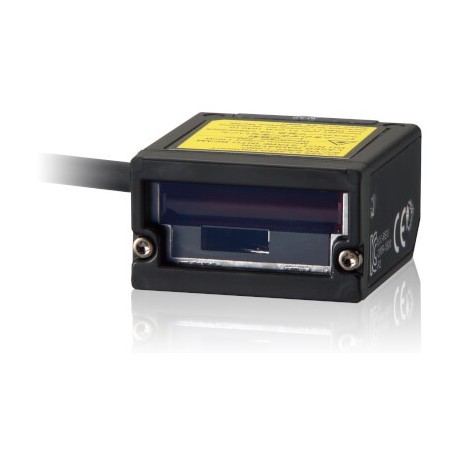

V509-W011 0,8M V5200002A V509W01108M OMRON Cable connection to PLC: 0.8 m
V509-W011 0,8M
V5200002A
V509W01108M
OMRON
1 Pcs.
Automation > Accessories/spare parts for sensor technology
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron V509-W011 0,8M is a specialized cable connection designed to link industrial barcode readers directly to programmable logic controllers. Interface cables ensure rapid, error-free data transmission between automated identification hardware and control systems on fast-moving production lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Barcode Readers: Cable output
- Round DIN connector: V500-R521C2
- ID Link Unit (sold separately): V700-L12
- Cables (sold separately): SYSMAC D-sub 9-pin cable, 0.8 m
- SYSMAC D-sub 9-pin cable, 5 m: V509-W016
- IBM PC/AT or compatible D-sub 9-pin cable, 0.8 m: V509-W011D
- IBM PC/AT or compatible D-sub 9-pin cable, 5 m: V509-W016D
- Applicable barcodes: Type of barcode
- Number of read digits: 32 digits max. (depends on bar width and read size)
- Reading performance 1: Resolution
- Contrast (PCS value): 0.45 min. (70% white reflectance min.)
- Reading distance: 60 to 270 mm (with 1.0-mm thin bar)
- Reading angle: Within 40° (including left and right margins)
- Skew angle: ±50° (excluding the upper 10° and lower 5° ranges)
- Pitch angle: ±25° (25° right and left)
- Light source: Red laser diode (wavelength: 650 nm)
More info
▲Fixed Barcode reader - Fast and easy
The V500-R2 is a laser based barcode reader for high speed processes. It can read codes on labels in any industry for traceability of parts or packages.
- High-speed reading at 1,000 Scans/second
- Reading codes even if they are partially dirty or missing
- Resistant against ambient light interference
Ordering information
Ratings and Specifications
Code 39, NW-7, ITF, STF (2 of 5 bars), Code 93, Code 128 (including EAN128), EAN/UPC (A and E) | ||
Reading | ||
The buzzer sounds when reading is successful. (The buzzer can be muted.) | ||
5 VDC ±10%2 | ||
Operating: 0 to 45°C, Storage: −10°C to 60°C (with no icing or condensation) | ||
Operating and storage: 30% to 85% (with no icing or condensation) | ||
12 to 100 Hz, 19.6 m/s2acceleration in X, Y, and Z directions for 3 hours each | ||
3,000 lx max. (fluorescent light; excluding inverter fluorescent lighting) | ||
