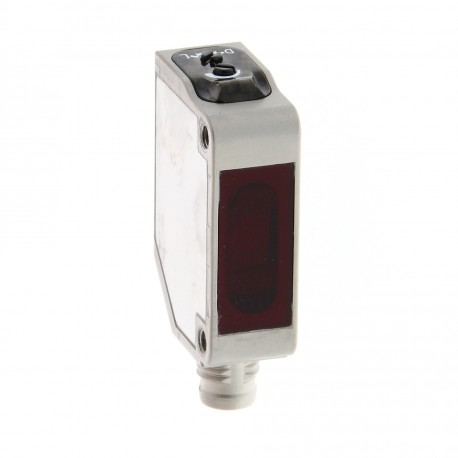

OMRON E3ZM-B66T E3ZM-B66T E3ZM0267F E3ZMB66T OMRON Metalica Obj. Transp. cc 3h Mirror 0.5 m, NPN, M8 Potentiometer View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3ZM-B66T E3ZM0267F E3ZMB66T OMRON Metalica Obj. Transp. cc 3h Mirror 0.5 m, NPN, M8 Potentiometer

E3ZM-B66T

E3ZM0267F

E3ZMB66T

OMRON

1 Pcs.

Metalica Obj. Transp. cc 3h Mirror 0.5 m, NPN, M8 Potentiometer Photoelectric sensor, rectangular housing, stainless steel, red LED, retro-reflective, transparent object, 500 mm, with potentiometer, NPN, Light-ON/D

Automation > Retroreflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A photoelectric sensor functions as an essential optical detection tool in factory automation, relying on light beams to spot items, monitor assembly processes, and control machine cycles. This Omron E3ZM-B66T model is built for secure deployment within demanding industrial setups. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Metal
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Polarized red light
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboidSensing methodRetro-reflectiveSensing distance500 mmSensing distance (min.)100 mmSetting methodManual adjustmentConnection methodConnector M8 - 4 pinOutput typeNPNOperation modeDark-ON, Light-ONResponse time1 msMaterial housingStainless steelThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)32 mmProduct Depth (unpacked)21 mmType of lightPolarized red lightPower supply voltage10-30 VFeaturesM.S.R., Transparent detection (all media: glass, PET, foil)Degree of protection (IP)IP67/IP69K

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
