OMRON TL-W5MB2 5M TL-W5MB2 5M TLW 1153A TLW5MB25MOMS OMRON Plane cc 3h NoEnr 5mm PNP NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

TL-W5MB2 5M TLW 1153A TLW5MB25MOMS OMRON Plane cc 3h NoEnr 5mm PNP NC

TL-W5MB2 5M

TLW 1153A

TLW5MB25MOMS

OMRON

1 Pcs.

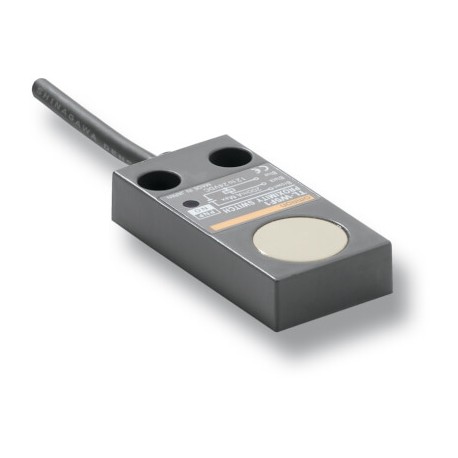

Plane cc 3h NoEnr 5mm PNP NC Proximity sensor, inductive, non-shielded, 5 mm, DC, 3-wire, PNP-NC, 5 m cable

Automation > Inductive proximity switch
TL-T/W

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron TL-W5MB2 5M is a plane inductive proximity sensor designed to detect metallic targets reliably in automated industrial environments. Such sensors are commonly deployed across manufacturing machinery and conveyor systems to provide non-contact position sensing, limit switching, and object counting functions.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • 22 × 8 × 6: 3 mm
  • 31 × 18 × 10: 5 mm
  • 53 × 40 × 23: 20 mm
  • 31 × 18 × 10: ¢
  • Sensing distance: 5 mm±10%
  • Response frequency: 500 Hz
  • Power supply voltage (operating voltage): 12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.
  • Protective circuits: Surge absorber; short- circuit protection
  • Ambient temperature: Operating; Storage Degree of protection: IEC60529 IP67
  • Material: Case; Sensing surface: Heat-resistant ABS resin
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Mechanical mounting condition for sensor (EF004041): Not flat
  • Type of actuation (EF006949): Metallic Target

More info

▲
Features

Flat shape inductive sensor in compact plastic housing

The TL-W family offers a wide range of block style inductive sensors for simple mounting on flat surfaces. With sensing distances from 1.5 mm to 20 mm the TL-W is the ideal solution for all standard applications.

  • Front and side facing surface
  • IP67
  • DC 2-wire and DC 3-wire models
  • Sensing distances from 1.5 mm to 20 mm

Ordering information

DC 2-wire

Size in mm

(H × W × D)



Sensing distance

Order code (for pre-wired types with 2 m PVC cable)

Operation mode normally open (NO)

Operation mode normally closed (NC)

31 × 18 × 10

-

¢

5 mm

TL-W5MD1

TL-W5MD2

DC 3-wire

Size in mm

(H × W × D)



Sensing distance

Order code (for pre-wired types with 2 m PVC cable)

PNP-NO

PNP-NC

NPN-NO

NPN-NC

25 × 8 × 5

-

¢

1.5 mm

TL-W1R5MB1

-

TL-W1R5MC1

-

22 × 8 × 6

3 mm

TL-W3MB1

TL-W3MB2

TL-W3MC1

TL-W3MC2

31 × 18 × 10

5 mm

TL-W5MB1

TL-W5MB2

TL-W5MC1

TL-W5MC2

53 × 40 × 23

20 mm

-

-

TL-W20ME1

TL-W20ME2

31 × 18 × 10

¢

-

5 mm

TL-W5F1

TL-W5F2

TL-W5E1

TL-W5E2

Specifications

Item

TL-W5MD_

TL-W1R5M_1

TL-W3M__

TL-W5M__

TL-W5E_/F_

TL-W20ME_

Sensing distance

5 mm±10%

1.5 mm±10%

3 mm±10%

5 mm±10%

20 mm±10%

Response frequency

500 Hz

1 kHz min.

600 Hz min.

500 Hz min.

300 Hz min.

40 Hz min.

Power supply voltage
(operating voltage)

12 to 24 VDC (10 to 30 VDC) ripple (p-p): 10% max.

10 to 30 VDC with a ripple (p-p) of 20% max.

12 to 24 VDC
(10 to 30 VDC)
ripple (p-p): 10% max.

Protective circuits

Surge absorber; short-
circuit protection

Surge suppressor; power supply reverse polarity protection

Ambient temperature

Operating

-25 to 70°C (with no icing or condensation)

Storage

Degree of protection

IEC60529 IP67

Material

Case

Heat-resistant ABS resin

Diecast aluminum

Heat-resistant ABS resin

Sensing surface

Heat-resistant ABS resin


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
