> OMRON > Timers > Others > H3RN1010A

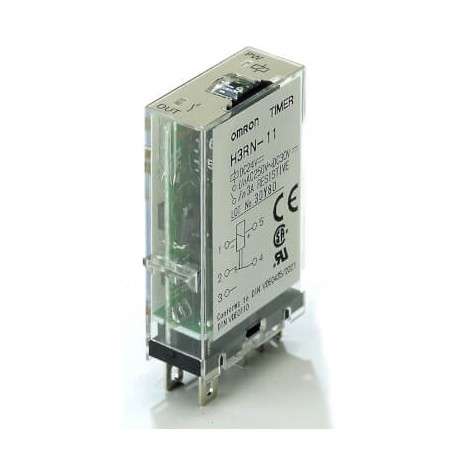

OMRON H3RN-21 12VDC H3RN-21 12VDC H3RN1010A H3RN2112DC OMRON 16mm DPST-NA 0.1 min-10h 12vdc View larger
Images are for illustrative purposes only. Please refer to data sheet for details

H3RN-21 12VDC H3RN1010A H3RN2112DC OMRON 16mm DPST-NA 0.1 min-10h 12vdc

H3RN-21 12VDC

H3RN1010A

H3RN2112DC

OMRON

1 Pcs.

16mm DPST-NA 0.1 min-10h 12vdc Timer, plug-in, 8-pin, multifunction, 0.1m-10h, DPST-NO, 3 A, 12 VDC

Automation > Timer relay
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Omron H3RN-21 12VDC time relay regulates electrical circuit timing within automated machinery, orchestrating precise delays for auxiliary equipment protection and sequential logic. Panel builders rely on these electromechanical timing devices to coordinate motor startups, conveyor intervals, and safety interlocks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP40
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Material of contact surface (EF004020): Silver
  • Voltage type for actuating (EF008242): DC
  • Type of electric connection (EF003961): Screw connection
  • Material contact (EF007544): Other not-copper alloys
  • Function delay on de-energization (EF003401): No
  • Suitable as remote control (EF003362): No
  • Outputs, reversible delayed/undelayed (EF006988): No
  • Function pulse shaping (EF003403): No
  • Suitable for DIN rail (top hat rail) mounting (EF007250): Yes
  • Complete with socket (EF003359): No
  • Function star-delta (EF003380): No
  • Function floating contact on energization (EF003378): Yes
  • Clock function, starting with pause, variable (EF003365): No
  • Function delay-on energization (EF003374): Yes

More info

▲
TypeAnalogInstallation typeSocketFunctionsMulti-functionalSize15.5 mmTerminal typePlug-inOperating modeFlicker OFF Start (Power ON Start), Flicker ON Start (Power ON Start), Interval (Power ON Start), ON Delay (Power ON Start)Output typeRelayContact descriptionDPST-NOTime range0.1 min - 10 hSupply voltage DC10.8-13.2 VNumber of pin contact6

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
