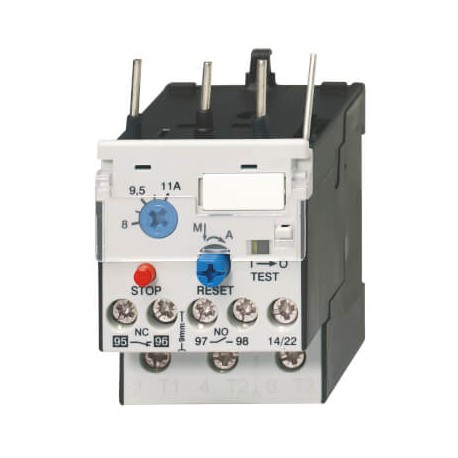

OMRON J7TKN-B-32 J7TKN-B-32 J7TK9031D J7TKNB32 OMRON 23A 32A (J7KN-10..40) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7TKN-B-32 J7TK9031D J7TKNB32 OMRON 23A 32A (J7KN-10..40)

J7TKN-B-32

J7TK9031D

J7TKNB32

OMRON

1 Pcs.

23A - 32A (J7KN-10..40) Overload relay, 3-pole, 23-32 A, direct mounting on J7KN10-40, hand and auto reset

Automation > Thermal overload relay
J7TK Thermal overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron J7TKN-B-32 is a thermal overload relay manufactured to safeguard electrical motors against continuous overcurrents and locked-rotor situations. Panel builders integrate these reliable devices into motor starter combinations to interrupt control power before thermal damage occurs.

Please note that pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Direct attachment
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10
  • Max. rated operation voltage Ue (EF007357): 600 V
  • Adjustable current range (EF008211): 23 A

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC-Setting range D.O.L. (A)23-32 ASetting range Star-delta [A]40-55 AProduct Width (unpacked)45 mmProduct Height (unpacked)80.5 mmProduct Depth (unpacked)70 mm
