View larger
Images are for illustrative purposes only. Please refer to data sheet for details

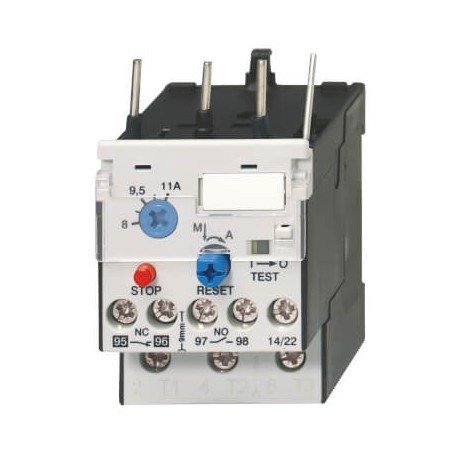

J7TKN-B-24 J7TK9030F J7TKNB24 OMRON 17A 24A (J7KN-10..40)
J7TKN-B-24
J7TK9030F
J7TKNB24
OMRON
1 Pcs.
17A - 24A (J7KN-10..40)
Overload relay, 3-pole, 17-24 A, direct mounting on J7KN10-40, hand and auto reset
Automation > Thermal overload relay
J7TK Thermal overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Setting range D.O.L. (A) | 17-24 A |
| Setting range Star-delta [A] | 30-41 A |
| Width | 45 mm |
| Height | 80.5 mm |
| Depth | 70 mm |
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Direct attachment |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Release class (EF006668) | CLASS 10 A |
| Reset function push-button (EF011942) | Yes |
| Reset function input (EF011940) | Yes |
| Reset function automatic (EF011941) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Max. rated operation voltage Ue (EF007357) | 690 V |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Adjustable current range (EF008211) | 17 A |
