View larger
Images are for illustrative purposes only. Please refer to data sheet for details

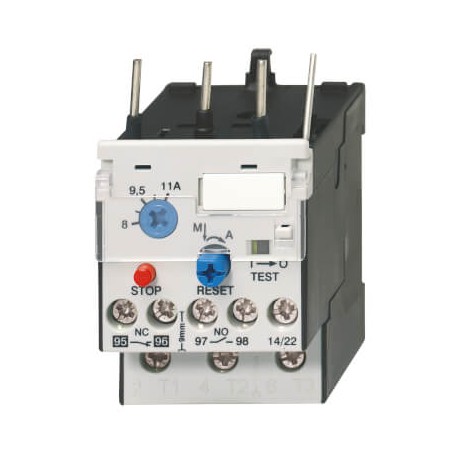

J7TKN-B-18 J7TK9029B J7TKNB18 OMRON 13A 18A (J7KN-10..40)
J7TKN-B-18
J7TK9029B
J7TKNB18
OMRON
1 Pcs.
13A - 18A (J7KN-10..40)
Overload relay, 3-pole, 13-18 A, direct mounting on J7KN10-40, hand and auto reset
Automation > Thermal overload relay
J7TK Thermal overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Auxiliary Contacts NO-Auxiliary Contacts NC-Setting range D.O.L. (A)13-18 ASetting range Star-delta [A]23-31 AProduct Width (unpacked)45 mmProduct Height (unpacked)80.5 mmProduct Depth (unpacked)70 mm
| Feature Name | Feature Value |
|---|---|
| Mounting method (EF000003) | Direct attachment |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Release class (EF006668) | CLASS 10 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Max. rated operation voltage Ue (EF007357) | 600 V |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 1 |
| Adjustable current range (EF008211) | 13 A |
