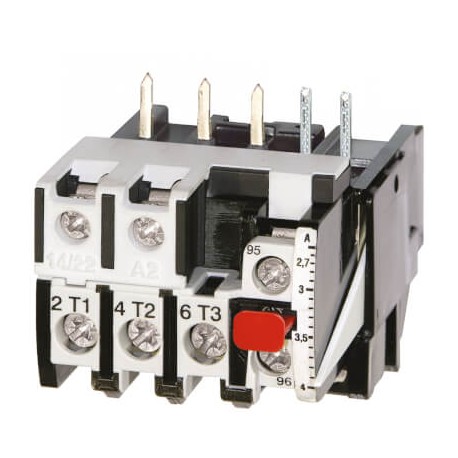

J7TKN-A-9 J7TK9076D J7TKNA9V2 OMRON 6A 9A (J7KNA .. J7KN-22)
J7TKN-A-9
J7TK9076D
J7TKNA9V2
OMRON
1 Pcs.
6A - 9A (J7KNA .. J7KN-22)
Overload relay, 3-pole, 6-9 A, direct mounting on J7KNA or J7KN10-22, manual reset
Automation > Thermal overload relay
J7TK Thermal overload relays
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Thermal overload relays are vital components in motor control panels, providing reliable inverse-time current sensing to prevent motor winding degradation from excessive operating loads.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Mounting method (EF000003): Direct attachment
- Type of electrical connection of main circuit (EF006819): Screw connection
- Release class (EF006668): CLASS 10
- Reset function push-button (EF011942): Yes
- Reset function input (EF011940): Yes
- Reset function automatic (EF011941): No
- Max. rated operation voltage Ue (EF007357): 600 V
- Adjustable current range (EF008211): 6 A
More info
▲
Auxiliary Contacts NO-Auxiliary Contacts NC-Setting range D.O.L. (A)6-9 ASetting range Star-delta [A]10.5-15.5 AProduct Width (unpacked)48.5 mmProduct Height (unpacked)95 mmProduct Depth (unpacked)77 mm
