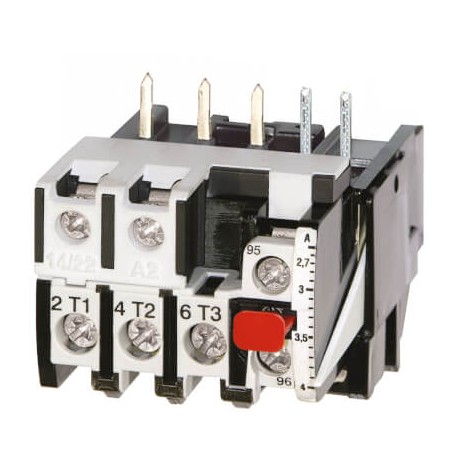

OMRON J7TKN-A-4 J7TKN-A-4 J7TK9074H J7TKNA4V2 OMRON 2.7 A 4A (J7KNA .. J7KN-22) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7TKN-A-4 J7TK9074H J7TKNA4V2 OMRON 2.7 A 4A (J7KNA .. J7KN-22)

J7TKN-A-4

J7TK9074H

J7TKNA4V2

OMRON

1 Pcs.

2.7 A - 4A (J7KNA .. J7KN-22) Overload relay, 3-pole, 2.7-4 A, direct mounting on J7KNA or J7KN10-22, manual reset

Automation > Thermal overload relay
J7TK Thermal overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron J7TKN-A-4 thermal overload relay is engineered for automated industrial installations to protect motors from thermal stress and excessive current draws. It connects directly to contactors to interrupt the control loop during overload events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Direct attachment
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10
  • Reset function push-button (EF011942): Yes
  • Reset function input (EF011940): Yes
  • Reset function automatic (EF011941): No
  • Max. rated operation voltage Ue (EF007357): 600 V
  • Adjustable current range (EF008211): 2.7 A

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC-Setting range D.O.L. (A)2.7-4 AProduct Width (unpacked)48.5 mmProduct Height (unpacked)95 mmProduct Depth (unpacked)77 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
