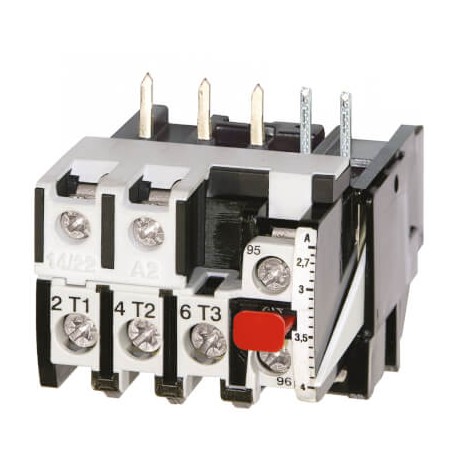

OMRON J7TKN-A-2E7 J7TKN-A-2E7 J7TK9073M J7TKNA2E7V2 OMRON 1.8 2.7 A (J7KNA .. J7KN-22) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7TKN-A-2E7 J7TK9073M J7TKNA2E7V2 OMRON 1.8 2.7 A (J7KNA .. J7KN-22)

J7TKN-A-2E7

J7TK9073M

J7TKNA2E7V2

OMRON

1 Pcs.

1.8 - 2.7 A (J7KNA .. J7KN-22) Overload relay, 3-pole, 1.8-2.7 A, direct mounting on J7KNA or J7KN10-22, manual reset

Automation > Thermal overload relay
J7TK Thermal overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron J7TKN-A-2E7 overload relay functions as a thermal protection element for industrial motor applications, preventing damage caused by excessive operating temperatures or current spikes. These units mount directly onto compatible contactors to interrupt power when threshold limits are reached.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Direct attachment
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10
  • Reset function push-button (EF011942): Yes
  • Reset function input (EF011940): Yes
  • Reset function automatic (EF011941): No
  • Max. rated operation voltage Ue (EF007357): 600 V
  • Adjustable current range (EF008211): 1.8 A

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC-Setting range D.O.L. (A)1.8-2.7 AProduct Width (unpacked)48.5 mmProduct Height (unpacked)95 mmProduct Depth (unpacked)77 mm
