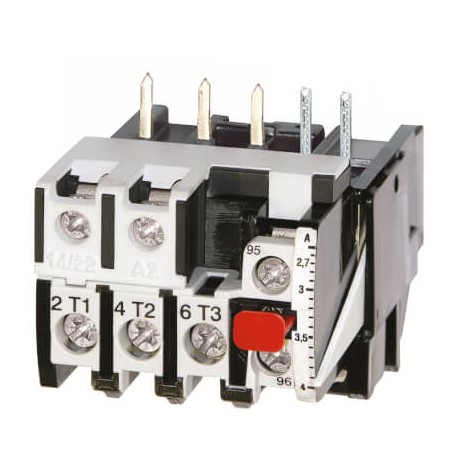

OMRON J7TKN-A-1E8 J7TKN-A-1E8 J7TK9072A J7TKNA1E8V2 OMRON 1,2 1,8 A (J7KNA .. J7KN-22) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

J7TKN-A-1E8 J7TK9072A J7TKNA1E8V2 OMRON 1,2 1,8 A (J7KNA .. J7KN-22)

J7TKN-A-1E8

J7TK9072A

J7TKNA1E8V2

OMRON

1 Pcs.

1,2 - 1,8 A (J7KNA .. J7KN-22) Overload relay, 3-pole, 1.2-1.8 A, direct mounting on J7KNA or J7KN10-22, manual reset

Automation > Thermal overload relay
J7TK Thermal overload relays

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Precision motor control circuits use thermal overload relays to shield electrical machinery from excessive heat buildup resulting from mechanical overloads or phase imbalances during continuous operation.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Mounting method (EF000003): Direct attachment
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Release class (EF006668): CLASS 10
  • Reset function push-button (EF011942): Yes
  • Reset function input (EF011940): Yes
  • Reset function automatic (EF011941): No
  • Max. rated operation voltage Ue (EF007357): 600 V
  • Adjustable current range (EF008211): 1.2 A

More info

▲
Auxiliary Contacts NO-Auxiliary Contacts NC-Setting range D.O.L. (A)1.2-1.8 AProduct Width (unpacked)48.5 mmProduct Height (unpacked)95 mmProduct Depth (unpacked)77 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
