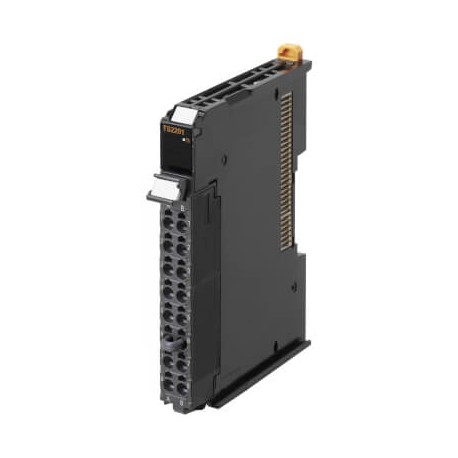

OMRON NX-TS2201 NX-TS2201 NX020056R NXTS2201 OMRON Unit NX 2 Inputs: RTD 0.1 ° C 200 ms View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NX-TS2201 NX020056R NXTS2201 OMRON Unit NX 2 Inputs: RTD 0.1 ° C 200 ms

NX-TS2201

NX020056R

NXTS2201

OMRON

1 Pcs.

Unit NX - 2 Inputs: RTD 0.1 ° C 200 ms 2 Temperature Sensor Inputs, Pt100 (3-wire), Pt1000, resolution 0.1 °C, 250 ms/Unit, screwless push-in connector, 12 mm wide

Automation > Fieldbus, decentr. periphery - analogue I/O module
Machine I/O NX-series

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for automated data acquisition, the NX-TS2201 NX020056R NXTS2201 OMRON Unit NX 2 Inputs: RTD 0.1 ° C 200 ms functions as an interface unit that collects physical sensor values in industrial installations. Signal conditioning units translate field device metrics into readable controller data for real-time monitoring and feedback control loops.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of electric connection (EF003961): Spring clamp connection
  • Output, current (EF003212): No
  • Radio standard UMTS (EF008525): No
  • Input, voltage (EF003205): No
  • Input, thermocouple (EF003208): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Analogue inputs configurable (EF008518): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Input, current (EF003204): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Analogue outputs configurable (EF008519): No
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No

More info

▲
I/O systemNX I/O BusType of moduleAnalog I/ONumber of analog inputs2Temperature input typePt100, Pt1000Linear analog input typeNoneResolution of the analog inputs14 BitInput circuit typeSingle-endedNumber of analog outputs0Linear analog output typeNoneResolution of the analog outputs0 BitConversion time250 ms/unitSignal processingFree runningIO-Link masterI/O connection typePush-inNumber of I/O connectors1Detachable I/O connectorSuitable for safety functionsSIL according to IEC 61508NoneDegree of protection (IP)IP20Product Height (unpacked)100 mmProduct Width (unpacked)12 mmProduct Depth (unpacked)80 mmProduct Weight (unpacked)70 g
