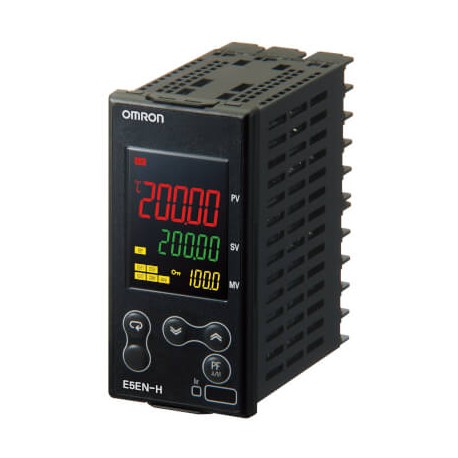

OMRON E5EN-HAA2HBMD-500 24VAC/DC E5EN-HAA2HBMD-500 24VAC/DC E5EN7208E E5ENHAA2HBMD500ACDC24 OMRON Universal input 2 ps aux HB 48x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5EN-HAA2HBMD-500 24VAC/DC E5EN7208E E5ENHAA2HBMD500ACDC24 OMRON Universal input 2 ps aux HB 48x96

E5EN-HAA2HBMD-500 24VAC/DC

E5EN7208E

E5ENHAA2HBMD500ACDC24

OMRON

1 Pcs.

Universal input 2 ps aux HB 48x96 Temp. controller, PROplus, ,1/4 DIN, (48 x 96)mm,2 x OUT option,2 x Aux OUT,1 x HT Burnout SSR fail.,2 Event I/Ps,option unit,24V AC/DC

Automation > Temperature monitoring relay
E5EN-H

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron E5EN-HAA2HBMD-500 24VAC/DC temperature controller provides high-performance regulation for complex thermal systems, utilizing advanced PID algorithms to optimize heating control across varied applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/8 DIN (96 x 48 mm)
  • Functions: HB/HS alarm for 1-phase heaters, ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 2
  • Number of alarm outputs: 2
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Linear current, Linear voltage, Relay, Voltage pulse
  • Terminal type: Screw
  • Voltage type (operating voltage): AC/DC
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC/DC
  • Error registration possible: No

More info

▲

Specifications

Size1/8 DIN (96 x 48 mm)
FunctionsHB/HS alarm for 1-phase heaters, ON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs2
Number of alarm outputs2
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputLinear current, Linear voltage, Relay, Voltage pulse
Terminal typeScrew
