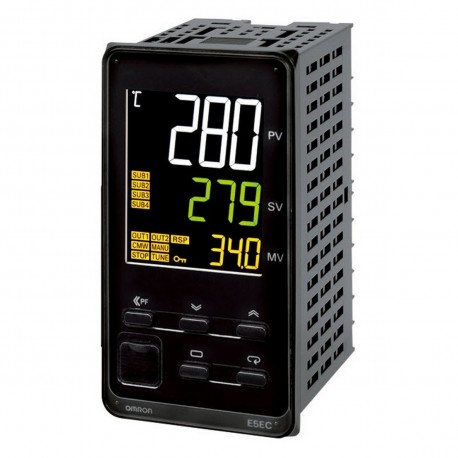

OMRON E5EC-RX4D5M-000 E5EC-RX4D5M-000 E5EC3001D 356306 OMRON Ent Universal 4 Alarms Salt Relay 24Vdc/Vac 48x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5EC-RX4D5M-000 E5EC3001D 356306 OMRON Ent Universal 4 Alarms Salt Relay 24Vdc/Vac 48x96

E5EC-RX4D5M-000

E5EC3001D

E5ECRX4D5M000

OMRON

1 Pcs.

Ent Universal 4 Alarm Ps Relay 24vdc/Vac 48x96 Temp. controller, PRO, 1/8 DIN (96x48mm),1 x Rel. OUT,4 AUX,24VAC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Temperature regulation within automated systems is managed efficiently by devices like the Omron E5EC-RX4D5M-000 digital controller. These components accept various sensor inputs to govern thermal processes across manufacturing cells, packaging lines, and environmental chambers.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/8 DIN (96 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 4
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Relay
  • Terminal: Screw
  • Voltage type (operating voltage): AC/DC
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC/DC
  • Error registration possible: No

More info

▲

Specifications

Size1/8 DIN (96 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs4
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputRelay
TerminalScrew
