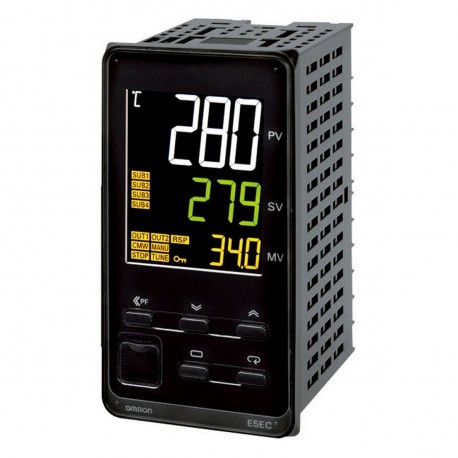

OMRON E5EC-RX4A5M-009 E5EC-RX4A5M-009 E5EC3002B E5ECRX4A5M009 OMRON Ent Universal 4 Alarm Ps Relay RS485 HBA Trif. 100-240vac 48x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5EC-RX4A5M-009 E5EC3002B E5ECRX4A5M009 OMRON Ent Universal 4 Alarm Ps Relay RS485 HBA Trif. 100-240vac 48x96

E5EC-RX4A5M-009

E5EC3002B

E5ECRX4A5M009

OMRON

1 Pcs.

Ent Universal 4 Alarm Ps Relay RS485 HBA Trif. 100-240vac 48x96 Temp. controller, PRO, 1/8 DIN (96x48mm),1 x Rel. OUT,4 AUX,EVT. I/P 2;RS-485,SSR fail.det./3-PH.,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

E5EC-RX4A5M-009 Omron advanced temperature controller serves as a dedicated processing unit for managing heating and cooling profiles in manufacturing equipment. It features multiple alarm outputs and interface capabilities to integrate seamlessly into broader automation networks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No
  • With detachable clamps (EF003340): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 4
  • Width (EF000008): 48 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of measuring circuits (EF003425): 1
  • Height (EF000040): 96 mm
  • Depth (EF000049): 60 mm
  • Supply voltage AC 50 Hz (EF007532): 100 V
  • Temperature measuring range (EF009788): -200 °C
  • Supply voltage AC 60 Hz (EF007533): 100 V

More info

▲
  • Fast and precise regulation: 50 ms sampling loop period time
  • Easy to set up, and operate intuitively via CX-Thermo without power supply
  • Best contrast display using white LCD technology which is visible from a far distance and from any angle
  • Useful alarm and diagnosis functions for secure operation
  • Practical timer and logic operation functions eliminating the need of a PLC
  • Additional models with different features are available. Please check related product catalogue.
