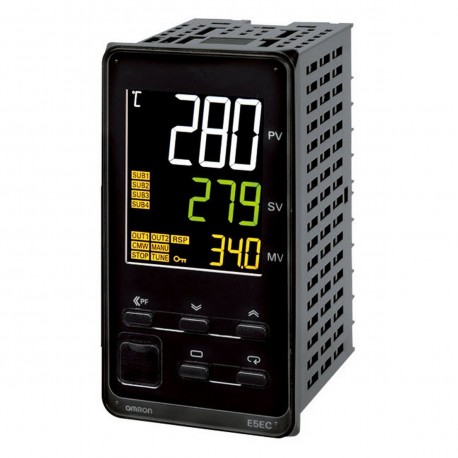

OMRON E5EC-QX4A5M-009 E5EC-QX4A5M-009 E5EC3010C E5ECQX4A5M009 OMRON Ent Universal 4 Alarms Salt SSR RS485 HBA Trif. 100-240vac 48x.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5EC-QX4A5M-009 E5EC3010C E5ECQX4A5M009 OMRON Ent Universal 4 Alarms Salt SSR RS485 HBA Trif. 100-240vac 48x..

E5EC-QX4A5M-009

E5EC3010C

E5ECQX4A5M009

OMRON

1 Pcs.

Ent Universal 4 Alarms Salt SSR RS485 HBA Trif. 100-240vac 48x96 Temp. controller, PRO, 1/8 DIN (96x48mm),1 x 12 VDC pulse OUT,4 AUX,EVT. I/P 2;RS-485,SSR fail.det./3-PH.,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E5EC-QX4A5M-009 universal temperature controller manages thermal processes in industrial heating and cooling systems, utilizing advanced PID algorithms to maintain precise temperature setpoints. These digital controllers integrate into control panels across manufacturing plants to regulate ovens, furnaces, and packaging machinery.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/8 DIN (96 x 48 mm)
  • Functions: HB/HS alarm for 3-phase heaters, ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 2
  • Number of alarm outputs: 4
  • Supply voltage AC: 100-240 V
  • Control output: Voltage pulse
  • Communication port(s): Serial RS-485
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No

More info

▲

Specifications

Size1/8 DIN (96 x 48 mm)
FunctionsHB/HS alarm for 3-phase heaters, ON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs2
Number of alarm outputs4
Supply voltage AC100-240 V
Control outputVoltage pulse
Communication port(s)Serial RS-485
TerminalScrew

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
