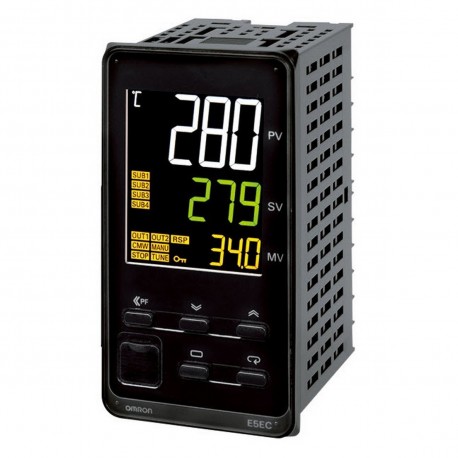

OMRON E5EC-QX4A5M-000 E5EC-QX4A5M-000 E5EC3008A 356313 OMRON Ent Universal 4 Alarms Salt SSR 100-240Vac 48x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5EC-QX4A5M-000 E5EC3008A 356313 OMRON Ent Universal 4 Alarms Salt SSR 100-240Vac 48x96

E5EC-QX4A5M-000

E5EC3008A

E5ECQX4A5M000

OMRON

1 Pcs.

Ent Universal 4 Alarms Salt SSR 100-240vac 48x96 Temp. controller, PRO, 1/8 DIN (96x48mm),1 x 12 VDC pulse OUT,4 AUX,100-240 VAC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E5EC-QX4A5M-000 temperature controller is an advanced digital process instrument installed in control panels to manage thermal loops across various industrial applications. It accepts multiple sensor inputs and delivers reliable PID regulation alongside alarm monitoring to ensure stable process operations.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/8 DIN (96 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 4
  • Supply voltage AC: 100-240 V
  • Control output: Voltage pulse
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No

More info

▲

Specifications

Size1/8 DIN (96 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs4
Supply voltage AC100-240 V
Control outputVoltage pulse
TerminalScrew
