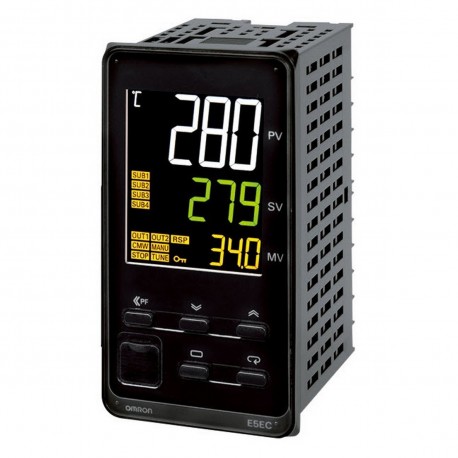

OMRON E5EC-CX4D5M-000 E5EC-CX4D5M-000 E5EC3041C E5ECCX4D5M000 OMRON Ent Universal 4 Alarms Salt Current 24vdc/Vac 48x96 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5EC-CX4D5M-000 E5EC3041C E5ECCX4D5M000 OMRON Ent Universal 4 Alarms Salt Current 24vdc/Vac 48x96

E5EC-CX4D5M-000

E5EC3041C

E5ECCX4D5M000

OMRON

1 Pcs.

Ent Universal 4 Alarms Salt Current 24vdc/Vac 48x96 Ent Universal 4 Alarms Current Salt 24Vdc/Vca 48x96 Temp. controller, PRO, 1/8 DIN (96x48mm),1x0/4-20mA curr. OUT,4 AUX,24VAC/DC

Automation > Temperature monitoring relay
E5_C

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E5EC-CX4D5M-000 temperature controller manages complex thermal loops in industrial machinery by processing multiple sensor types and driving control outputs. These units are deployed in production lines to maintain strict temperature tolerances and ensure product quality.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/8 DIN (96 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 4
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Linear current
  • Terminal: Screw
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Error registration possible (EF003423): No

More info

▲

Specifications

Size1/8 DIN (96 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs0
Number of alarm outputs4
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputLinear current
TerminalScrew

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
