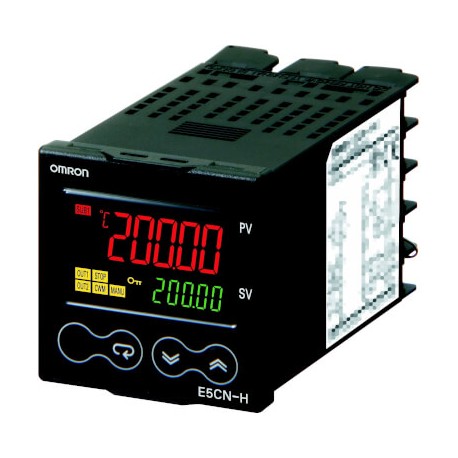

OMRON E5CN-HV2MD-500 24VAC/DC E5CN-HV2MD-500 24VAC/DC E5CN7207M E5CNHV2MD500ACDC24 OMRON Universal input, 2 Alarms Voltage Output View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CN-HV2MD-500 24VAC/DC E5CN7207M E5CNHV2MD500ACDC24 OMRON Universal input, 2 Alarms Voltage Output

E5CN-HV2MD-500 24VAC/DC

E5CN7207M

E5CNHV2MD500ACDC24

OMRON

1 Pcs.

Universal input, 2 Alarms Voltage Output Temp. controller, PROplus,1/16 DIN, (48 x 48)mm,1 x Linear Voltg. OUT,2 x Aux OUT,option unit,24V AC/DC

Automation > Temperature monitoring relay
E5CN-H

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E5CN-HV2MD-500 24VAC/DC is a universal input temperature controller deployed to manage heating and cooling tasks in industrial machinery. Controllers process sensor data to deliver exact PID or ON/OFF regulation for consistent thermal management.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 2
  • Number of alarm outputs: 2
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Linear voltage
  • Terminal type: Screw
  • Voltage type (operating voltage): AC/DC
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC/DC
  • Error registration possible: No

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs2
Number of alarm outputs2
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputLinear voltage
Terminal typeScrew
