View larger
Images are for illustrative purposes only. Please refer to data sheet for details

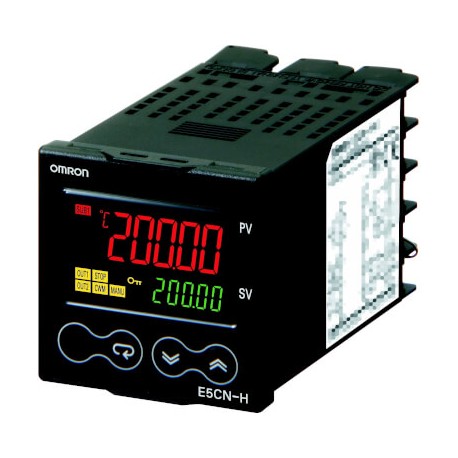

E5CN-HV2M-500 100-240 VAC E5CN7203G E5CNHV2M500AC100240 OMRON Universal input, 2 Alarms Voltage Output
E5CN-HV2M-500 100-240 VAC
E5CN7203G
E5CNHV2M500AC100240
OMRON
1 Pcs.
Universal input, 2 Alarms Voltage Output
Temp. controller, PROplus,1/16 DIN, (48 x 48)mm,1 x Linear Voltg. OUT,2 x Aux OUT,option unit,100-240V AC
Automation > Temperature monitoring relay
E5CN-H
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Size1/16 DIN (48 x 48 mm)FunctionsON/OFF control, PID controlNumber of control loops1Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, ULinear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mATemperature range-200-2300 °CNumber of event inputs2Number of alarm outputs2Supply voltage AC100-240 VControl outputLinear voltageTerminal typeScrew
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Width (EF000008) | 48 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 48 mm |
| Depth (EF000049) | 78 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
