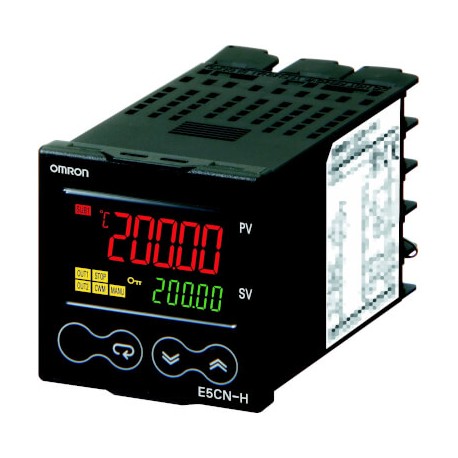

OMRON E5CN-HR2MD-500 24VAC/DC E5CN-HR2MD-500 24VAC/DC E5CN7204E E5CNHR2MD500ACDC24 OMRON Universal input, 2 Alarm Output Relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CN-HR2MD-500 24VAC/DC E5CN7204E E5CNHR2MD500ACDC24 OMRON Universal input, 2 Alarm Output Relay

E5CN-HR2MD-500 24VAC/DC

E5CN7204E

E5CNHR2MD500ACDC24

OMRON

1 Pcs.

Universal input, 2 Alarm Output Relay Temp. controller, PROplus,1/16 DIN, (48 x 48)mm,1 x Relay Out,2 x Aux OUT,option unit,24V AC/DC

Automation > Temperature monitoring relay
E5CN-H

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron temperature controller, part number E5CN-HR2MD-500 24VAC/DC, delivers reliable thermal control and process monitoring for various industrial heating applications. These controllers interface with multiple sensor types to dynamically manage output power and maintain exact temperature thresholds.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 2
  • Number of alarm outputs: 2
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Relay
  • Terminal type: Screw
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Error registration possible (EF003423): No

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs2
Number of alarm outputs2
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputRelay
Terminal typeScrew
