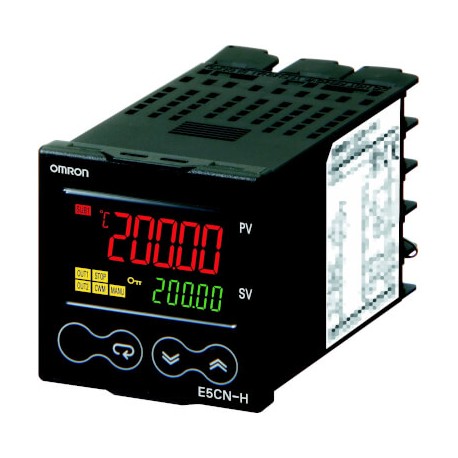

OMRON E5CN-HR2M-500 100-240 VAC E5CN-HR2M-500 100-240 VAC E5CN7200B E5CNHR2M500AC100240 OMRON Universal input, 2 Alarm Output Relay View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CN-HR2M-500 100-240 VAC E5CN7200B E5CNHR2M500AC100240 OMRON Universal input, 2 Alarm Output Relay

E5CN-HR2M-500 100-240 VAC

E5CN7200B

E5CNHR2M500AC100240

OMRON

1 Pcs.

Universal input, 2 Alarm Output Relay Temp. controller, PROplus,1/16 DIN, (48 x 48)mm,1 x Relay Out,2 x Aux OUT,option unit,100-240V AC

Automation > Temperature monitoring relay
E5CN-H

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for multi-purpose thermal management, this Omron temperature controller helps stabilize heating and cooling cycles in demanding industrial setups. Technicians rely on these instruments to process diverse sensor inputs and deliver reliable switching commands to actuators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No
  • With detachable clamps (EF003340): No
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Width (EF000008): 48 mm
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of measuring circuits (EF003425): 1
  • Height (EF000040): 48 mm
  • Depth (EF000049): 78 mm
  • Supply voltage AC 50 Hz (EF007532): 100 V
  • Temperature measuring range (EF009788): -200 °C
  • Supply voltage AC 60 Hz (EF007533): 100 V

More info

▲
Size1/16 DIN (48 x 48 mm)FunctionsON/OFF control, PID controlNumber of control loops1Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, ULinear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mATemperature range-200-2300 °CNumber of event inputs2Number of alarm outputs2Supply voltage AC100-240 VControl outputRelayTerminal typeScrew
