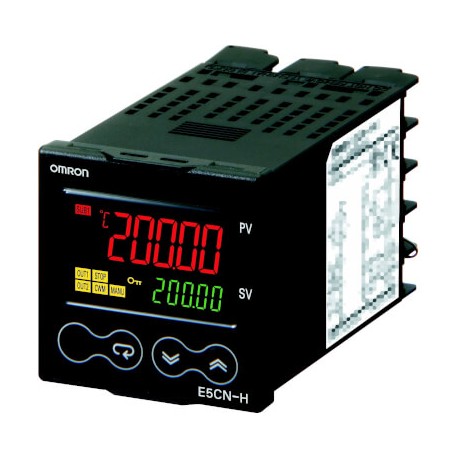

OMRON E5CN-HQ2MD-500 24VAC/DC E5CN-HQ2MD-500 24VAC/DC E5CN7205C E5CNHQ2MD500ACDC24 OMRON Universal input, 2 Alarm Output Pulses View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CN-HQ2MD-500 24VAC/DC E5CN7205C E5CNHQ2MD500ACDC24 OMRON Universal input, 2 Alarm Output Pulses

E5CN-HQ2MD-500 24VAC/DC

E5CN7205C

E5CNHQ2MD500ACDC24

OMRON

1 Pcs.

Universal input, 2 Alarm Output Pulses Temp. controller, PROplus,1/16 DIN, (48 x 48)mm,1 x Pulsed voltage OUT,2 x Aux OUT,option unit,24V AC/DC

Automation > Temperature monitoring relay
E5CN-H

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron universal input temperature controller (E5CN-HQ2MD-500 24VAC/DC) manages heating and cooling cycles in automated machinery by continuously comparing process values against programmed setpoints. These controllers are standard additions to electrical control cabinets requiring precise thermal management and alarm monitoring. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 2
  • Number of alarm outputs: 2
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Voltage pulse
  • Terminal type: Screw
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Error registration possible (EF003423): No

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs2
Number of alarm outputs2
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputVoltage pulse
Terminal typeScrew
