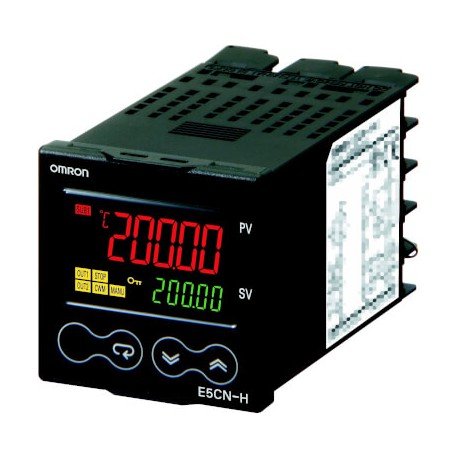

OMRON E5CN-HC2MD-500 24VAC/DC E5CN-HC2MD-500 24VAC/DC E5CN7206A E5CNHC2MD500ACDC24 OMRON Universal input, 2 Alarm Output Current View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CN-HC2MD-500 24VAC/DC E5CN7206A E5CNHC2MD500ACDC24 OMRON Universal input, 2 Alarm Output Current

E5CN-HC2MD-500 24VAC/DC

E5CN7206A

E5CNHC2MD500ACDC24

OMRON

1 Pcs.

Universal input, 2 Alarm Output Current Temp. controller, PROplus,1/16 DIN, (48 x 48)mm,1 x Current OUT,2 x Aux OUT,option unit,24V AC/DC

Automation > Temperature monitoring relay
E5CN-H

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Precise thermal control in manufacturing lines is driven by the Omron E5CN-HC2MD-500 24VAC/DC temperature controller, utilizing universal inputs and PID algorithms. Such devices orchestrate heating and cooling output to maintain exact thermal setpoints in demanding applications.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
  • Linear analog input type: 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
  • Temperature range: -200-2300 °C
  • Number of event inputs: 2
  • Number of alarm outputs: 2
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Linear current
  • Terminal type: Screw
  • Voltage type (operating voltage): AC/DC
  • Type of electric connection: Screw connection
  • Voltage type (supply voltage): AC/DC
  • Error registration possible: No

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeB, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U
Linear analog input type0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA
Temperature range-200-2300 °C
Number of event inputs2
Number of alarm outputs2
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputLinear current
Terminal typeScrew
