View larger
Images are for illustrative purposes only. Please refer to data sheet for details

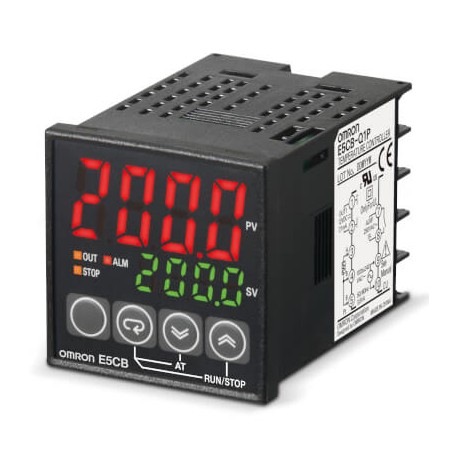

E5CB-R1TCD 24VAC/DC E5CB0003B E5CBR1TCDACDC24 OMRON Thermocouple Output Relay 1 Alarm 48x48
E5CB-R1TCD 24VAC/DC
E5CB0003B
E5CBR1TCDACDC24
OMRON
1 Pcs.
Thermocouple Output Relay 1 Alarm 48x48
Temp. controller, LITE, 1/16DIN (48 x 48mm), relay output, ON/OFF or PID Control, Thermocouple input, 1 Alarm Rel., 24 VAC/DC
Automation > Temperature monitoring relay
E5CS-V / E5CB
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Size | 1/16 DIN (48 x 48 mm) |
| Functions | ON/OFF control, PID control |
| Number of control loops | 1 |
| Temperature input type | J, K, R, S, T |
| Temperature range | -200-1700 °C |
| Number of event inputs | 0 |
| Number of alarm outputs | 1 |
| Supply voltage AC | 20.4-26.4 V |
| Supply voltage DC | 20.4-26.4 V |
| Control output | Relay |
| Terminal type | Screw |
Accessories
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Width (EF000008) | 48 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 58 mm |
| Depth (EF000049) | 60 mm |
| Supply voltage AC 50 Hz (EF007532) | 21.6 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 21.6 V |
| Supply voltage DC (EF007534) | 21.6 V |
