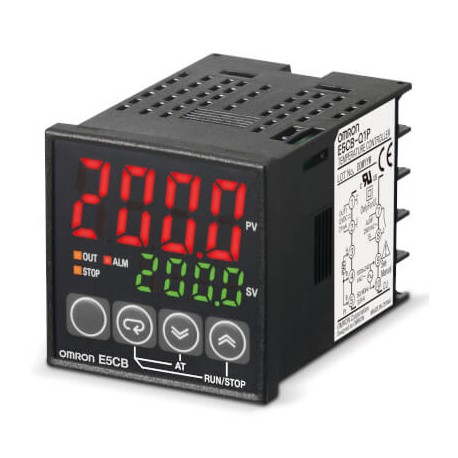

OMRON E5CB-Q1TCD 24VAC/DC E5CB-Q1TCD 24VAC/DC E5CB0007E E5CBQ1TCDACDC24 OMRON Thermocouple Output Voltage 1 Alarm 48x48 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E5CB-Q1TCD 24VAC/DC E5CB0007E E5CBQ1TCDACDC24 OMRON Thermocouple Output Voltage 1 Alarm 48x48

E5CB-Q1TCD 24VAC/DC

E5CB0007E

E5CBQ1TCDACDC24

OMRON

1 Pcs.

Thermocouple Output Voltage 1 Alarm 48x48 Temp. controller, LITE, 1/16DIN (48 x 48mm), 12 VDC pulsed output, ON/OFF or PID Control, Thermocouple input, 1 Alarm Rel., 24 VAC/DC

Automation > Temperature monitoring relay
E5CS-V / E5CB

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed by Omron under part number E5CB-Q1TCD 24VAC/DC, this temperature controller provides closed-loop thermal regulation for commercial and industrial heating systems. It processes signals from thermocouples and adjusts control outputs to keep thermal processes within safe operational thresholds.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Size: 1/16 DIN (48 x 48 mm)
  • Functions: ON/OFF control, PID control
  • Number of control loops: 1
  • Temperature input type: J, K, R, S, T
  • Temperature range: -200-1700 °C
  • Number of event inputs: 0
  • Number of alarm outputs: 1
  • Supply voltage AC: 20.4-26.4 V
  • Supply voltage DC: 20.4-26.4 V
  • Control output: Voltage pulse
  • Terminal type: Screw
  • Voltage type (operating voltage) (EF005294): AC/DC
  • Type of electric connection (EF003961): Screw connection
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Error registration possible (EF003423): No
  • External reset possible (EF003426): No

More info

▲

Specifications

Size1/16 DIN (48 x 48 mm)
FunctionsON/OFF control, PID control
Number of control loops1
Temperature input typeJ, K, R, S, T
Temperature range-200-1700 °C
Number of event inputs0
Number of alarm outputs1
Supply voltage AC20.4-26.4 V
Supply voltage DC20.4-26.4 V
Control outputVoltage pulse
Terminal typeScrew

Accessories

E58-CIFQ2E5CB & E5CC and E5EC* accessory, quick link programming cable, allows direct USB connection without requirement for communications card or power supply. Also the diplay will be powered (CX-Thermo v4.4 is needed). *For E5EC front connection.
Y92F-52DIN mounting adapter for E5CC and E5CB
