View larger
Images are for illustrative purposes only. Please refer to data sheet for details

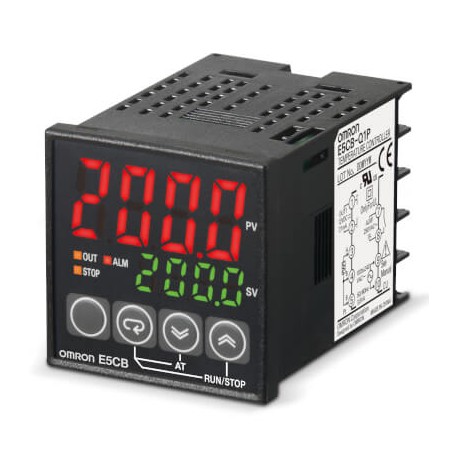

E5CB-Q1P 100-240 VAC E5CB0006G E5CBQ1PAC100240 OMRON Pt100 Output Voltage 1 Alarm 48x48
E5CB-Q1P 100-240 VAC
E5CB0006G
E5CBQ1PAC100240
OMRON
1 Pcs.
Pt100 Output Voltage 1 Alarm 48x48
Temp. controller, LITE, 1/16DIN (48 x 48mm), 12 VDC pulsed output, Pt100 , ON/OFF or PID Control, Pt100 RTD input, 1 Alarm Rel., 100-240 VAC
Automation > Temperature monitoring relay
E5CS-V / E5CB
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Size1/16 DIN (48 x 48 mm)FunctionsON/OFF control, PID controlNumber of control loops1Temperature input typePt100Temperature range-200-1700 °CNumber of event inputs0Number of alarm outputs1Supply voltage AC100-240 VControl outputVoltage pulseTerminal typeScrew
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Width (EF000008) | 48 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 58 mm |
| Depth (EF000049) | 60 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
