View larger
Images are for illustrative purposes only. Please refer to data sheet for details

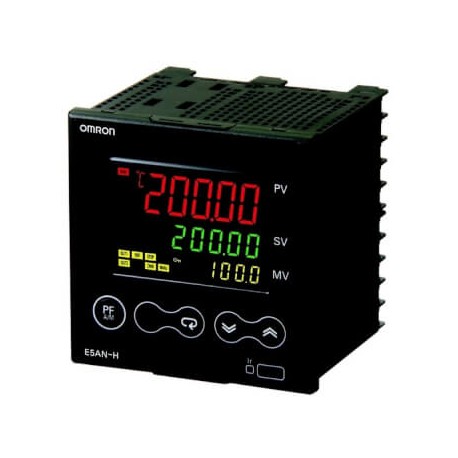

E5AN-HPRR2BM-500 100-240 VAC E5AN7206D E5ANHPRR2BM500AC100240 OMRON Universal input motorised Valve 96x96
E5AN-HPRR2BM-500 100-240 VAC
E5AN7206D
E5ANHPRR2BM500AC100240
OMRON
1 Pcs.
Universal input motorised Valve 96x96
Temp. controller, PROplus, 1/4 DIN, (96 x 96)mm,Pos. Prop. Control,2 x Aux OUT,2 Event I/Ps,option unit,Terminal cov.,100-240V AC
Automation > Temperature monitoring relay
E5AN-H
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Size | 1/4 DIN (96 x 96 mm) |
| Functions | ON/OFF control, PID control, Positional proportional control |
| Number of control loops | 1 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature range | -200-2300 °C |
| Number of event inputs | 2 |
| Number of alarm outputs | 2 |
| Supply voltage AC | 100-240 V |
| Control output | 2 Relay |
| Terminal type | Screw |
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 2 |
| Width (EF000008) | 96 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 96 mm |
| Depth (EF000049) | 79.2 mm |
| Supply voltage AC 50 Hz (EF007532) | 85 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 85 V |
