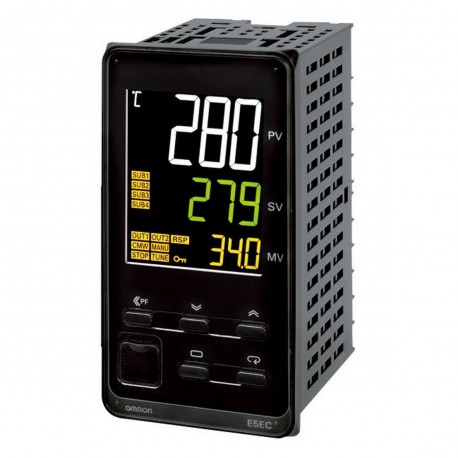

E5EC-RX4A5M-010 E5EC3004R E5ECRX4A5M010 OMRON Ent Universal 4 Alarm Ps Relay 4 Evt HBA 100-240vac 48x96
E5EC-RX4A5M-010
E5EC3004R
E5ECRX4A5M010
OMRON
1 Pcs.
Ent Universal 4 Alarm Ps Relay 4 Evt HBA 100-240vac 48x96
Temp. controller, PRO, 1/8 DIN (96x48mm),1 x Rel. OUT,4 AUX,EVT. I/P 4,Ht. Burnout SSR fail.,100-240 VAC
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Size | 1/8 DIN (96 x 48 mm) |
| Functions | HB/HS alarm for 1-phase heaters, ON/OFF control, PID control |
| Number of control loops | 1 |
| Temperature input type | B, C (WRe5-26), E, J, JPt100, K, L, N, P (PLII), Pt100, R, S, T, U |
| Linear analog input type | 0 to 10 V, 0 to 20 mA, 0 to 5 V, 1 to 5 V, 4 to 20 mA |
| Temperature range | -200-2300 °C |
| Number of event inputs | 4 |
| Number of alarm outputs | 4 |
| Supply voltage AC | 100-240 V |
| Control output | Relay |
| Terminal | Screw |
| Feature Name | Feature Value |
|---|---|
| Voltage type (operating voltage) (EF005294) | AC |
| Type of electric connection (EF003961) | Screw connection |
| Voltage type (supply voltage) (EF002991) | AC |
| Error registration possible (EF003423) | No |
| External reset possible (EF003426) | No |
| With detachable clamps (EF003340) | No |
| Number of contacts as change-over contact (EF008257) | 0 |
| Number of contacts as normally open contact (EF008256) | 4 |
| Width (EF000008) | 48 mm |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of measuring circuits (EF003425) | 1 |
| Height (EF000040) | 96 mm |
| Depth (EF000049) | 60 mm |
| Supply voltage AC 50 Hz (EF007532) | 100 V |
| Temperature measuring range (EF009788) | -200 °C |
| Supply voltage AC 60 Hz (EF007533) | 100 V |
