E5EC-CX4A5M-013 E5EC3046D E5ECCX4A5M013 OMRON Ent Univ 4 Alarms Salt. Current 6 Evt RSP Transf 100-240vac 48..
E5EC-CX4A5M-013
E5EC3046D
E5ECCX4A5M013
OMRON
1 Pcs.
Automation > Temperature monitoring relay
E5_C
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

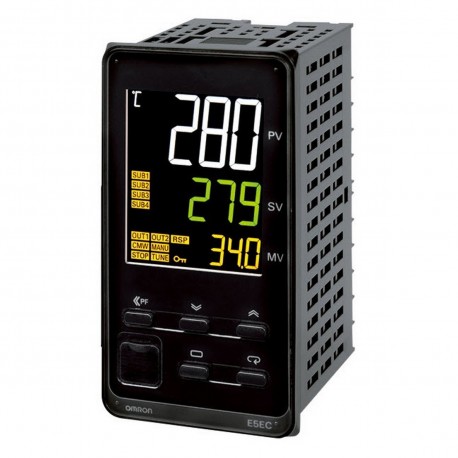

Omron E5EC-QX4A5M-013 is a universal digital temperature controller built for precise thermal control in industrial production lines. Such controllers interface with thermocouples and resistance thermometers to continuously adjust outputs and stabilize system temperatures. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type (operating voltage): AC
- Type of electric connection: Screw connection
- Voltage type (supply voltage): AC
- Error registration possible: No
- External reset possible: No
- With detachable clamps: No
- Number of contacts as change-over contact: 0
- Number of contacts as normally open contact: 4
- Width: 48 mm
- Number of contacts as normally closed contact: 0
- Number of measuring circuits: 1
- Height: 96 mm
- Depth: 60 mm
- Supply voltage AC 50 Hz: 100 V
- Temperature measuring range: -200 °C
- Supply voltage AC 60 Hz: 100 V
More info
▲- Fast and precise regulation: 50 ms sampling loop period time
- Easy to set up, and operate intuitively via CX-Thermo without power supply
- Best contrast display using white LCD technology which is visible from a far distance and from any angle
- Useful alarm and diagnosis functions for secure operation
- Practical timer and logic operation functions eliminating the need of a PLC
- Additional models with different features are available. Please check related product catalogue.
