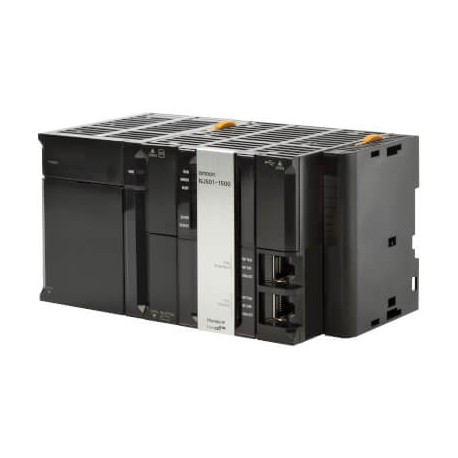

OMRON NJ501-4400 NJ501-4400 NX010010F NJ5014400 OMRON NJ501 Machine Controller + Robotics to 32 Axes View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NJ501-4400 NX010010F NJ5014400 OMRON NJ501 Machine Controller + Robotics to 32 Axes

NJ501-4400

NX010010F

NJ5014400

OMRON

1 Pcs.

NJ501 Machine Controller + Robotics to 32 Axes Sysmac NJ5 CPU with Robot kinematics, (max 8 robots), 20MB memory, built-in EtherCAT (32 servo axes, in total 192 EtherCAT nodes) and EtherNet/IP

Automation > PLC CPU-module
Machine Controllers NJ5

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron NJ501-4400 is a modular machine controller and robotics unit built to manage up to 32 axes in advanced industrial automation systems. Programmable controllers of this type coordinate complex multi-axis motion, logical sequencing, and high-speed data handling across manufacturing machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Modular
  • Voltage type (supply voltage) (EF002991): AC/DC
  • Type of memory (EF002996): FLASH
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for IEC 60870 (EF016069): No
  • Supporting protocol for EtherNet/IP (EF007521): Yes
  • Supporting protocol for DNP3 (EF016068): No

More info

▲
Controller functionalityMotion control, Robotics, Sequence controlMax. number of synchronous axes32Max. number of axes (incl. virtual)32Max. number of robots8Primary task cycle time0.5 msProgram memory20 MBVariables memory6 MBCommunication port(s)EtherCAT Master, EtherNet/IP, USBCommunication option(s)CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485Max. number of remote I/O nodes192I/O systemCJ I/O BusMax. number of expansion units40Product Height (unpacked)96 mmProduct Width (unpacked)90 mmProduct Depth (unpacked)150 mmProduct Weight (unpacked)530 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
