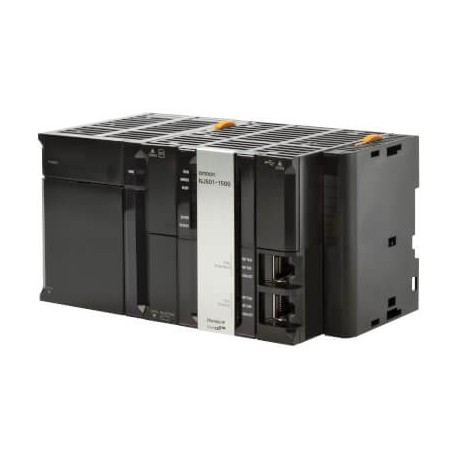

NJ501-4300 NX010009B NJ5014300 OMRON NJ501 Machine Controller + Robotics 16 Axes
NJ501-4300
NX010009B
NJ5014300
OMRON
1 Pcs.
Automation > PLC CPU-module
Machine Controllers NJ5
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron part number NJ501-4300 is an air cooled frequency converter utilized to govern motor performance and electrical frequency parameters in high-throughput automation cells. Integrating this hardware helps facilities minimize mechanical wear and achieve precise rotational speeds across diverse industrial applications. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Controller functionality: Motion control, Robotics, Sequence control
- Max. number of synchronous axes: 16
- Max. number of axes (incl. virtual): 16
- Max. number of robots: 4
- Primary task cycle time: 0.5 ms
- Program memory: 20 MB
- Variables memory: 6 MB
- Communication port(s): EtherCAT Master, EtherNet/IP, USB
- Max. number of remote I/O nodes: 192
- I/O system: CJ I/O Bus
- Max. number of expansion units: 40
- Height: 90 mm
- Width: 90 mm
- Depth: 90 mm
- Weight: 530 g
- Model (EF000010): Modular
More info
▲Specifications
| Controller functionality | Motion control, Robotics, Sequence control |
| Max. number of synchronous axes | 16 |
| Max. number of axes (incl. virtual) | 16 |
| Max. number of robots | 4 |
| Primary task cycle time | 0.5 ms |
| Program memory | 20 MB |
| Variables memory | 6 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 192 |
| I/O system | CJ I/O Bus |
| Max. number of expansion units | 40 |
| Height | 90 mm |
| Width | 90 mm |
| Depth | 90 mm |
| Weight | 530 g |
