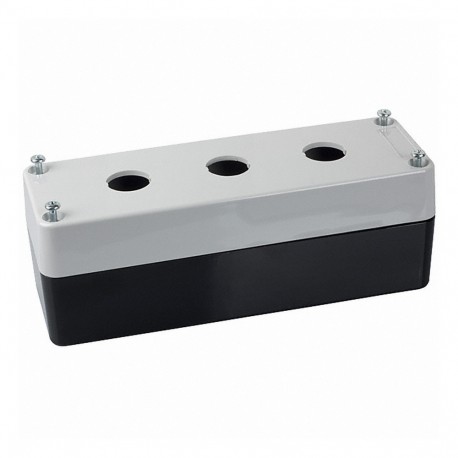

OMRON A22Z-B103 A22Z-B103 A22 0063M A22ZB103 OMRON Box 3 holes A22 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22Z-B103 A22 0063M A22ZB103 OMRON Box 3 holes A22

A22Z-B103

A22 0063M

A22ZB103

OMRON

1 Pcs.

Box 3 holes A22 Control box enclosure, three holes Control box enclosure, three holes, depth 68.5 mm

Automation > Enclosure for control circuit devices
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron box 3 holes a22 acts as a specialized control station housing designed to accommodate three 22mm operator devices. Multi-hole enclosures allow technicians to group related pushbuttons and pilot lights into a unified, ergonomic operator interface. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • 30-dia. head Push-lock Turn-reset: SPST-NC
  • SPST-NO/SPST-NC: A22E-S-11
  • DPST-NC: A22E-S-02
  • 40-dia. head Push-lock Turn-reset: SPST-NC
  • SPST-NO/SPST-NC: A22E-M-11
  • DPST-NC: A22E-M-02
  • 60-dia. head Push-lock Turn-reset: SPST-NC
  • SPST-NO/SPST-NC: A22E-L-11
  • DPST-NC: A22E-L-02
  • 40-dia. head Push-lock Turn-reset: SPST-NC
  • SPST-NO/SPST-NC: 24 VAC/VDC
  • DPST-NC: 24 VAC/VDC
  • 40-dia. head Push-lock Turn-reset: SPST-NC
  • SPST-NO/SPST-NC: 220 VAC
  • DPST-NC: 220 VAC
  • Control boxes (enclosures): One hole

More info

▲

Ordering information

Non-lighted models

Description

Output

Color of cap

Order code

30-dia. head

Push-lock

Turn-reset

SPST-NC

Red

A22E-S-01

SPST-NO/SPST-NC

A22E-S-11

DPST-NC

A22E-S-02

40-dia. head

Push-lock

Turn-reset

SPST-NC

A22E-M-01

SPST-NO/SPST-NC

A22E-M-11

DPST-NC

A22E-M-02

60-dia. head

Push-lock

Turn-reset

SPST-NC

A22E-L-01

SPST-NO/SPST-NC

A22E-L-11

DPST-NC

A22E-L-02

Lighted models

Description

Output

Lighting

Rated voltage

Color of cap

Order code

40-dia. head

Push-lock

Turn-reset

SPST-NC

LED

24 VAC/VDC

Red

A22EL-M-24A-01

SPST-NO/SPST-NC

24 VAC/VDC

A22EL-M-24A-11

DPST-NC

24 VAC/VDC

A22EL-M-24A-02

40-dia. head

Push-lock

Turn-reset

SPST-NC

220 VAC

A22EL-M-T2-01

SPST-NO/SPST-NC

220 VAC

A22EL-M-T2-11

DPST-NC

220 VAC

A22EL-M-T2-02

Accessories (Order separately)

Item

Classification

Remarks

Order code

Control boxes
(enclosures)

One hole

Material: Polycarbonate resin

A22Z-B101

One hole, yellow box (for emergency stop)

A22Z-B101Y

Two holes

A22Z-B102

Three holes

A22Z-B103

Legend plates for emergency stop

60-dia. black letters on yellow back-ground

“EMERGENCY STOP” is indicated on the plate.

A22Z-3466-1

90-dia. black letters on yellow back-ground

A22Z-3476-1

Lock plate

Locks the mounting latch of the switch assembly

-

A22Z-3380

Specifications

Contacts (standard load)

Rated carry
current

Rated voltage

Rated current (A)

AC15

AC12

DC13

DC12

10

24 VAC

10

10

-

-

220 VAC

3

6

24 VDC

-

-

1.5

10

220 VDC

0.2

0.6

  • Note 1. Rated current values are determined according to the testing conditions. The above ratings were obtained by conducting tests under the following conditions.
    (1) Ambient temperature: 20×±2°C
    (2) Ambient humidity: 65%±5%
    (3) Operating frequency: 20 operations/minute
  • 2. Minimum applicable load: 10 mA at 5 VDC

Contacts (microload)

Rated applicable load

Minimum applicable load

50 mA at 5 VDC (resistive load)

1 mA at 5 VDC

Characteristics

Item

Emergency stop switches

Non-lighted model: A22E

Lighted model: A22EL

Dielectric strength

2,500 VAC, 50/60 Hz for 1 min between terminals of same polarity
2,500 VAC, 50/60 Hz for 1 min between terminals of different polarity and also between each terminal and ground

Durability

Mechanical

Momentary operation: 300,000 operations min.

Electrical

300,000 operations min.

Degree of protection

IP65
(oil-resistant)

IP65
