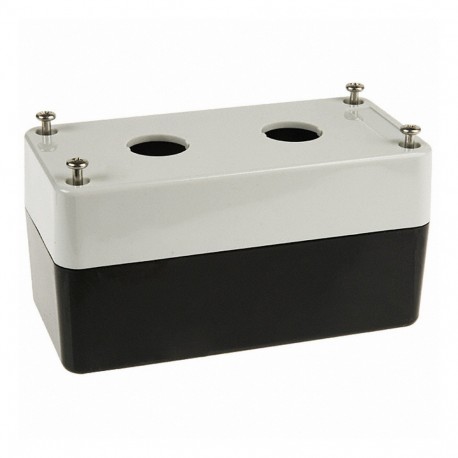

A22Z-B102 A22 0062A A22ZB102 OMRON Box 2 holes A22
A22Z-B102
A22 0062A
A22ZB102
OMRON
1 Pcs.
Automation > Enclosure for control circuit devices
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A control box enclosure designed to accommodate operator push buttons and emergency stop switches in machine safety applications. These housings facilitate neat surface mounting of control accessories while protecting wiring terminations from environmental exposure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 30-dia. head Push-lock Turn-reset: SPST-NC
- SPST-NO/SPST-NC: A22E-S-11
- DPST-NC: A22E-S-02
- 40-dia. head Push-lock Turn-reset: SPST-NC
- SPST-NO/SPST-NC: A22E-M-11
- DPST-NC: A22E-M-02
- 60-dia. head Push-lock Turn-reset: SPST-NC
- SPST-NO/SPST-NC: A22E-L-11
- DPST-NC: A22E-L-02
- 40-dia. head Push-lock Turn-reset: SPST-NC
- SPST-NO/SPST-NC: 24 VAC/VDC
- DPST-NC: 24 VAC/VDC
- 40-dia. head Push-lock Turn-reset: SPST-NC
- SPST-NO/SPST-NC: 220 VAC
- DPST-NC: 220 VAC
- Control boxes (enclosures): One hole
More info
▲Ordering information
Non-lighted models
Description | Output | Color of cap | Order code |
|---|---|---|---|
| 30-dia. head Push-lock Turn-reset | SPST-NC | Red | A22E-S-01 |
SPST-NO/SPST-NC | A22E-S-11 | ||
DPST-NC | A22E-S-02 | ||
| 40-dia. head Push-lock Turn-reset | SPST-NC | A22E-M-01 | |
SPST-NO/SPST-NC | A22E-M-11 | ||
DPST-NC | A22E-M-02 | ||
| 60-dia. head Push-lock Turn-reset | SPST-NC | A22E-L-01 | |
SPST-NO/SPST-NC | A22E-L-11 | ||
DPST-NC | A22E-L-02 |
Lighted models
Description | Output | Lighting | Rated voltage | Color of cap | Order code |
|---|---|---|---|---|---|
| 40-dia. head Push-lock Turn-reset | SPST-NC | LED | 24 VAC/VDC | Red | A22EL-M-24A-01 |
SPST-NO/SPST-NC | 24 VAC/VDC | A22EL-M-24A-11 | |||
DPST-NC | 24 VAC/VDC | A22EL-M-24A-02 | |||
| 40-dia. head Push-lock Turn-reset | SPST-NC | 220 VAC | A22EL-M-T2-01 | ||
SPST-NO/SPST-NC | 220 VAC | A22EL-M-T2-11 | |||
DPST-NC | 220 VAC | A22EL-M-T2-02 |
Accessories (Order separately)
Item | Classification | Remarks | Order code | |
|---|---|---|---|---|
Control boxes | One hole | Material: Polycarbonate resin | A22Z-B101 | |
One hole, yellow box (for emergency stop) | A22Z-B101Y | |||
Two holes | A22Z-B102 | |||
Three holes | A22Z-B103 | |||
Legend plates for emergency stop | 60-dia. black letters on yellow back-ground | “EMERGENCY STOP” is indicated on the plate. | A22Z-3466-1 | |
90-dia. black letters on yellow back-ground | A22Z-3476-1 | |||
Lock plate | Locks the mounting latch of the switch assembly | - | A22Z-3380 | |
Specifications
Contacts (standard load)
Rated carry | Rated voltage | Rated current (A) | |||
|---|---|---|---|---|---|
AC15 | AC12 | DC13 | DC12 | ||
10 | 24 VAC | 10 | 10 | - | - |
220 VAC | 3 | 6 | |||
24 VDC | - | - | 1.5 | 10 | |
220 VDC | 0.2 | 0.6 | |||
- Note 1. Rated current values are determined according to the testing conditions. The above ratings were obtained by conducting tests under the following conditions.
(1) Ambient temperature: 20×±2°C
(2) Ambient humidity: 65%±5%
(3) Operating frequency: 20 operations/minute - 2. Minimum applicable load: 10 mA at 5 VDC
Contacts (microload)
Rated applicable load | Minimum applicable load |
|---|---|
50 mA at 5 VDC (resistive load) | 1 mA at 5 VDC |
Characteristics
Item | Emergency stop switches | ||
|---|---|---|---|
Non-lighted model: A22E | Lighted model: A22EL | ||
Dielectric strength | 2,500 VAC, 50/60 Hz for 1 min between terminals of same polarity | ||
Durability | Mechanical | Momentary operation: 300,000 operations min. | |
Electrical | 300,000 operations min. | ||
Degree of protection | IP65 | IP65 | |
