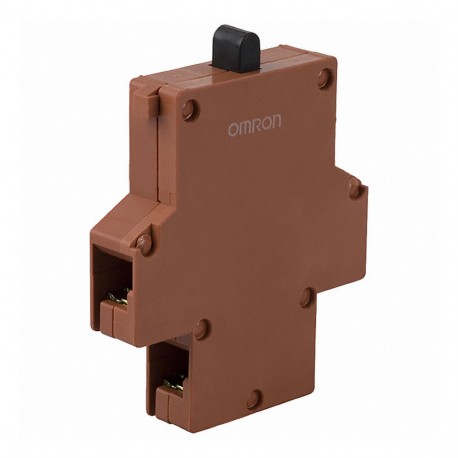

OMRON A22-02 A22-02 A22 0107E A2202 OMRON Block 2NC View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A22-02 A22 0107E A2202 OMRON Block 2NC

A22-02

A22 0107E

A2202

OMRON

30 Pcs.

Block 2NC Contact block, DPST-NC, general-purpose load

Automation > Auxiliary contact block
A22

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A contact block unit, such as the Omron A22-02, provides the necessary switching elements behind control station actuators to open or close auxiliary circuits. These rugged blocks snap into standard pushbutton enclosures for reliable electrical control.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Clip-on
  • Type of electric connection (EF003961): Screw connection
  • Number of contacts as change-over contact (EF008257): 0
  • Number of contacts as normally open contact (EF008256): 0
  • Rated operation current Ie at AC-15, 230 V (EF001385): 3 A
  • Number of contacts as normally closed contact (EF008255): 2
