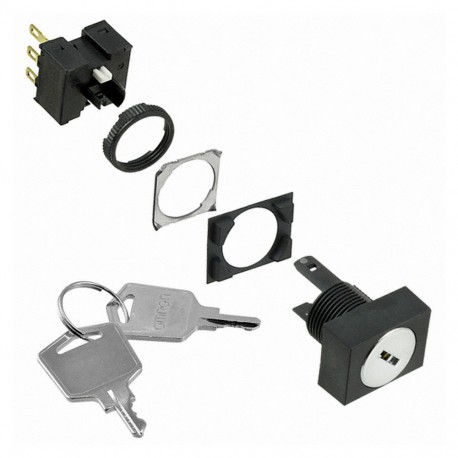

OMRON A165K-J2M A165K-J2M A16K2011C A165KJ2M OMRON Selector key rectangular 2 positions View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A165K-J2M A16K2011C A165KJ2M OMRON Selector key rectangular 2 positions

A165K-J2M

A16K2011C

A165KJ2M

OMRON

30 Pcs.

Selector key rectangular 2 positions Rectangular key selector 2 positions Selector switch, rectangular, key-type, 2 notches, maintained, IP65, key release both positions

Automation > Front element for selector switch
A16

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron rectangular selector key switch enables manual control and restricted access across various industrial electronics and machine control boards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Colour front ring (EF002429): Black
  • Construction type lens (EF006253): Rectangular
  • Material front ring (EF005972): Plastic
  • Type of control element (EF006976): Key
  • Degree of protection (IP), front side (EF003118): IP65
  • Colour control element (EF007167): Black
  • With front ring (EF006014): Yes
  • Spring-return (EF001407): No
  • Switching function latching (EF007447): No
  • Suitable for lighting (EF001142): No
  • Number of switch positions (EF000231): 2
  • Height opening (EF004778): 16 mm
  • Width opening (EF004565): 16 mm
  • Hole diameter (EF000079): 16 mm

More info

▲
  • Momentary and latching models available
  • Automatic and manual models available
  • Modular construction, snap-in switch unit
  • Oil-resistant IP65 models
  • UL and cUL approved, conforms to EN60947-5-1 and IEC947-5-1
