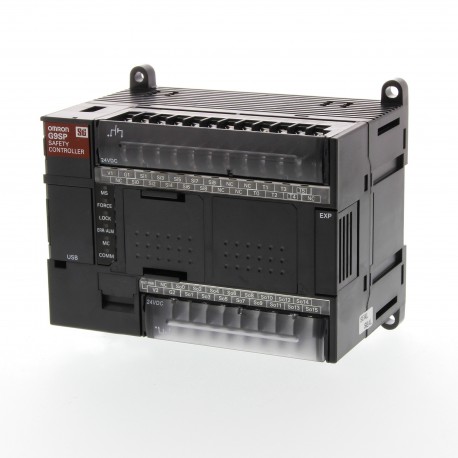

OMRON G9SP-N20S G9SP-N20S G9SP0003R G9SPN20S OMRON Safety controller 20E-8S-6T View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G9SP-N20S G9SP0003R G9SPN20S OMRON Safety controller 20E-8S-6T

G9SP-N20S

G9SP0003R

G9SPN20S

OMRON

1 Pcs.

Safety controller 20E-8S-6T G9SP Standalone Safety controller, 20 safety input, 8 safety output, 6 test output. PNP Programmable Safety controller,G9SP standalone , 20 safety input, 8 safety output, 6 test output. PNP

Automation > Device for monitoring of safety-related circuits
G9SP

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron G9SP-N20S is a standalone safety controller engineered to manage safety input and output signals in automated industrial environments. Safety controllers coordinate emergency stops, light curtains, and protective door switches to shut down hazardous machine motion and prevent operator injury. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Standalone safety controller: 10 PNP safety inputs 4 PNP safety outputs 4 test outputs 4 PNP standard outputs
  • 10 PNP safety inputs 16 PNP safety outputs 6 test outputs: G9SP-N10D
  • 20 PNP safety inputs 8 PNP safety outputs 6 test outputs: G9SP-N20S
  • G9SP configurator: Setup disk 1 license
  • Setup disk 10 licenses: WS02-G9SP10-V1
  • Setup disk 50 licenses: WS02-G9SP50-V1
  • Setup disk Site license: WS02-G9SPXX-V1
  • Expansion I/O unit: Sinking
  • Sourcing: 12
  • I/O Connecting cable, 80 cm long: CP1W-CN811
  • RS-232 option board: CP1W-CIF01
  • Ethernet option board (Ver. 2.0 or later): CP1W-CIF41
  • Memory cassette: CP1W-ME05M
  • G9SP Status Display Touchscreen with 1.8 m cable: 82614-0010 H-T40M-P
  • G9SP-N10S Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01): 82612-0010 G9SP-N10S-SDK
  • G9SP-N10D Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01): 82612-0020 G9SP-N10D-SDK

More info

▲
  • Three CPU-types to suit different applications
  • Clear diagnosis and monitoring via Ethernet or Serial connection
  • Memory cassette for easy duplication of configuration
  • Unique programming software to support easy design, verification, standardization and reusage of the program
  • Certified according to PLe (EN ISO 13849-1) and SIL 3 (IEC 61508)

Specifications & ordering info

Ordering information

Appearance

Appearance description

Order code

Standalone
safety controller

10 PNP safety inputs
4 PNP safety outputs
4 test outputs
4 PNP standard outputs

G9SP-N10S

10 PNP safety inputs
16 PNP safety outputs
6 test outputs

G9SP-N10D

20 PNP safety inputs
8 PNP safety outputs
6 test outputs

G9SP-N20S

Software

Appearance

Media

Applicable OS

Order code

G9SP
configurator

Setup disk 1 license

Windows 2000
Windows XP
Windows Vista
Windows 7

WS02-G9SP01-V1

Setup disk 10 licenses

WS02-G9SP10-V1

Setup disk 50 licenses

WS02-G9SP50-V1

Setup disk Site license

WS02-G9SPXX-V1

Expansion units (standard I/O)

Appearance

Type

Number of I/O

Model

In

Out

Expansion I/O unit

Sinking

12

8 (solid state)

CP1W-20EDT

Sourcing

12

8 (solid state)

CP1W-20EDT1

Sinking

-

32 (solid state)

CP1W-32ET

Sourcing

-

32 (solid state)

CP1W-32ET1

I/O Connecting cable, 80 cm long

CP1W-CN811

G9SP configuration

Option units

Appearance

Order code

RS-232 option board

CP1W-CIF01

Ethernet option board (Ver. 2.0 or later)

CP1W-CIF41

Memory cassette

CP1W-ME05M

G9SP Status Display Touchscreen with 1.8 m cable

82614-0010 H-T40M-P

G9SP-N10S Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01)

82612-0010 G9SP-N10S-SDK

G9SP-N10D Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01)

82612-0020 G9SP-N10D-SDK

G9SP-N20S Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01)

82612-0030 G9SP-N20S-SDK

G9SP-N10S kit with EtherNet/IP module

82608-0010 G9SP-N10S-EIP

G9SP-N10D kit with EtherNet/IP module

82608-0020 G9SP-N10D-EIP

G9SP-N20S kit with EtherNet/IP module

82608-0030 G9SP-N20S-EIP

Specifications

General specifications

Power supply voltage

20.4 to 26.4 VDC
(24 VDC -15% +10%)

Consumption current

G9SP-N10S

400 mA
(V1: 300 mA, V2: 100 mA)

G9SP-N10D

500 mA
(V1: 300 mA, V2: 200 mA)

G9SP-N20S

500 mA
(V1: 400 mA, V2: 100 mA)

Mounting method

35-mm DIN track

Ambient operating temperature

0°C to 55°C

Ambient storage temperature

-20°C to 75°C

Degree of protection

IP20 (IEC 60529)

Safety input specifications

Input type

Sinking inputs (PNP)

ON voltage

11 VDC min. between each input terminal and G1

OFF voltage

5 VDC max. between each input terminal and G1

OFF current

1 mA max.

Input current

6 mA

Safety output specifications

Output type

Sourcing outputs (PNP)

Rated output current

0.8 A max. per output*

Residual voltage

1.2 V max. between each output terminal and V2

Test output specifications

Output type

Sourcing outputs (PNP)

Rated output current

0.3 A max. per output*

Residual voltage

1.2 V max. between each output terminal and V1

Standard output specifications (G9SP-N10S)

Output type

Sourcing outputs (PNP)

ON Residual voltage

1.5 V max. (between each output terminal and V2)

Rated output current

100 mA max.*

*For details on the rated output current, please refer to the user manual of G9SP.

G9SP configuration tool


Product Datasheet
