View larger
Images are for illustrative purposes only. Please refer to data sheet for details

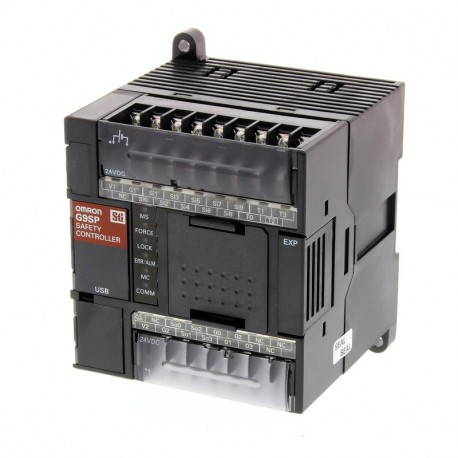

G9SP-N10S G9SP0001B G9SPN10S OMRON Driver security 10E-4S-4T-4S aux
G9SP-N10S
G9SP0001B
G9SPN10S
OMRON
1 Pcs.
Driver security 10E-4S-4T-4S aux
G9SP Standalone Safety controller, 10 safety input, 4 safety output, 4 test output, 4 standard output. PNP
Automation > Device for monitoring of safety-related circuits
G9SP
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Three CPU-types to suit different applications
- Clear diagnosis and monitoring via Ethernet or Serial connection
- Memory cassette for easy duplication of configuration
- Unique programming software to support easy design, verification, standardization and reusage of the program
- Certified according to PLe (EN ISO 13849-1) and SIL 3 (IEC 61508)
Specifications & ordering info
Ordering information
10 PNP safety inputs | ||
Software
Expansion units (standard I/O)
G9SP configuration
Option units
G9SP-N10S Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01) | |
G9SP-N10D Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01) | |
G9SP-N20S Display Kit (G9SP, Touchscreen, cable, CP1W-CIF01) | |
Specifications
General specifications
Safety input specifications
Safety output specifications
Test output specifications
Standard output specifications (G9SP-N10S)
*For details on the rated output current, please refer to the user manual of G9SP.
G9SP configuration tool
| Feature Name | Feature Value |
|---|---|
| Stop category according to IEC 60204 (EF007498) | Other |
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Type of safety according to IEC 61496-1 (EF004105) | 4 |
| Model (EF000010) | Basic device |
| Evaluation inputs (EF008245) | Other |
| Type of electric connection (EF003961) | Screw connection |
| SIL according to IEC 61508 (EF009889) | 3 |
| Voltage type (supply voltage) (EF002991) | DC |
| With approval for TÜV (EFDE0031) | No |
| Suitable for monitoring of proximity switches (EF007267) | Yes |
| Suitable for monitoring of emergency-stop circuits (EF007268) | Yes |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | Yes |
| With detachable clamps (EF003340) | No |
| With start input (EF003342) | No |
| With muting function (EF004057) | No |
| Suitable for monitoring of valves (EF007272) | Yes |
| With approval according to UL (EF001783) | No |
| Suitable for monitoring of tactile sensors (EF007271) | Yes |
| With feedback circuit (EF003343) | No |
| Suitable for monitoring of magnetic switches (EF007266) | Yes |
| Suitable for monitoring of position switches (EF007270) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| With approval for BG BIA (EF004145) | No |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 8 |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 4 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Width (EF000008) | 86 mm |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Height (EF000040) | 90 mm |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 0 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| Depth (EF000049) | 81 mm |
| Supply voltage DC (EF007534) | 20.4 V |
