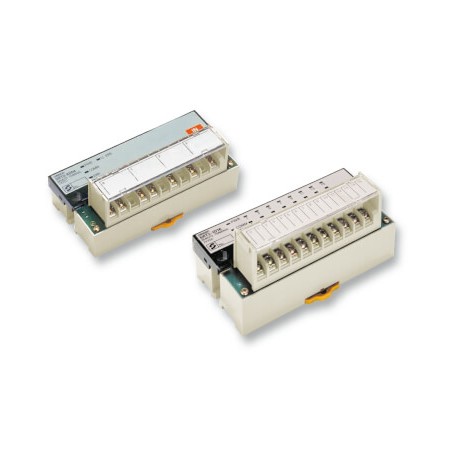

SRT2-ID16P SRT27048A SRT2ID16P,1 OMRON Module 16 Inputs PCB Compobus/S
SRT2-ID16P
SRT27048A
SRT2ID16P.1
OMRON
1 Pcs.
Automation > Fieldbus, decentr. periphery - digital I/O module
SRT (Compobus S)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron SRT2-ID16P module is an electronic component engineered for decentralized fieldbus networks, gathering digital inputs from industrial sensors for system processing. Compobus/S compatible blocks streamline machine wiring by routing multiple sensor signals through a single communication cable. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 4-point PNP input unit: 24 VDC, 6 mA per point
- 8-point PNP input unit: 24 VDC, 6 mA per point
- 16-point PNP input unit: 24 VDC, 6 mA per point
- 16-point PNP input unit: 24 VDC, 6 mA per point
- 4-point PNP output unit: 24 VDC, 0.3 A per point
- 8-point PNP output unit: 24 VDC, 0.3 A per point
- 16-point PNP output unit: 24 VDC, 0.3 A per point
- 16-point PNP output unit: 24 VDC, 0.5 A per point
- 8-point input + 8-point output unit (PNP): 24 VDC, input 6 mA, output 0.3 A per point
- 8-point relay output unit: Max. 3 A per point
- 16-point relay output unit: Max. 3 A per point
- 4-Channel analog input unit: 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA
- 2-Channel analog output unit: 0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 0 to 20 mA, 4 to 20 mA
- CompoBus/S branch connector (IDC) for flatcable: SCN1-TH4
- CompoBus/S termination connector (IDC) for flatcable: SCN1-TH4T
- CompoBus/S termination block (screw connection): SRS1-T
More info
▲Fast and easy over CompoBus/S
Omron's unique CompoBus/S is the most efficient I/O bus for machine automation. With free topology and up to 500 m bus length in long-distance mode, it can be used as a remote I/O system. In high-speed mode (100 m max.) the guaranteed sub-millisecond cycle time makes it ideal for efficient machine control. Used with the compact CPM2C-S PLC as master, your machine control system will fit in the smallest spaces.
- Compact size in IP20 housing
- Fast cycle time; less than 1 ms per 256 I/O points
- Easy set-up; no software required
- Choice of 4- 8- and 16-point Digital I/O; transistor-, and relay models
- Analog In/Outputs and customisable modules available
Ordering information
0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, | ||||
0 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, |
Note:To order models with NPN (sinking) outputs and corresponding inputs (+V common), omit the “-1” from the model code.
Accessories
CompoBus/S 4-wire flatcable for power and communication (100 m) | |
