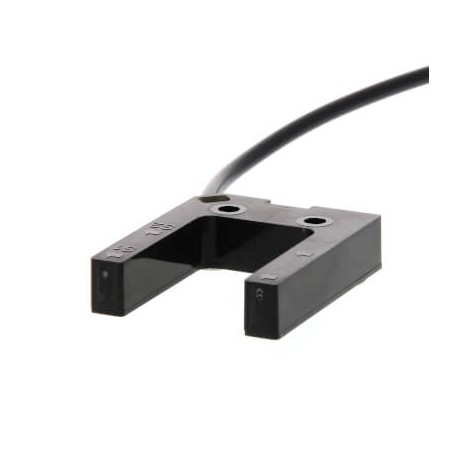

OMRON E3Z-G81 2M E3Z-G81 2M E3Z 7226R E3ZG812MOMS OMRON Ecological cc Horseshoe 1 beam 25mm PNP View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-G81 2M E3Z 7226R E3ZG812MOMS OMRON Ecological cc Horseshoe 1 beam 25mm PNP

E3Z-G81 2M

E3Z 7226R

E3ZG812MOMS

OMRON

10 Pcs.

Ecological cc Horseshoe 1 beam 25mm PNP Photoelectric sensor, slot housing, infrared LED, single through-beam, 25 mm, PNP, Light-ON/Dark-ON, 2 m cable

Automation > Fork light barrier
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E3Z-G81 2M ecological CC horseshoe 1 beam 25mm PNP is a photoelectric sensor utilized in automated machinery and production lines to detect the presence or position of objects without physical contact. These optical sensors direct a light beam across a designated slot or gap, registering interruptions in the beam to trigger downstream logic or controls. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP64
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Infrared light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeU-shapedSensing methodThrough-beam with slotSensing distance25 mmSetting methodManual adjustmentConnection methodCableCable length2 mOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingABSThread sizeOtherProduct Width (unpacked)11 mmProduct Height (unpacked)40 mmProduct Depth (unpacked)50 mmType of lightInfrared lightPower supply voltage12-24 VFeaturesTwo optical axisDegree of protection (IP)IP64

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
