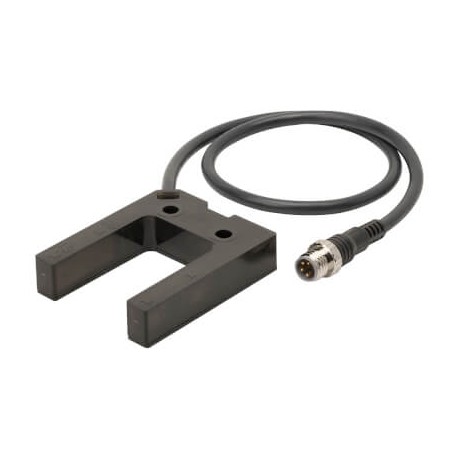

OMRON E3Z-G61-M3J E3Z-G61-M3J E3Z 7189M E3ZG61M3JOMS OMRON Ecological cc Horseshoe 1 axis travelling.25mm NPN Cable 0,3 M + M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-G61-M3J E3Z 7189M E3ZG61M3JOMS OMRON Ecological cc Horseshoe 1 axis travelling.25mm NPN Cable 0,3 M + M8

E3Z-G61-M3J

E3Z 7189M

E3ZG61M3JOMS

OMRON

10 Pcs.

Ecological cc Horseshoe 1 axis travelling.25mm NPN Cable 0,3 M + M8 Photoelectric sensor, slot housing, infrared LED, single through-beam, 25 mm, NPN, Light-ON/Dark-ON, M8 pigtail connector 4-pin, 0.3 m

Automation > Fork light barrier
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron E3Z-G61-M3J ecological cc horseshoe 1 axis travelling.25mm sensors provide reliable optical detection for moving parts and mechanical automation setups, utilizing targeted light beams to verify position limits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP64
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable with connector
  • Type of light (EF004029): Infrared light
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeU-shapedSensing methodThrough-beam with slotSensing distance25 mmSetting methodManual adjustmentConnection methodM8 pigtail connector 4 pinCable length0.3 mOutput typeNPNOperation modeDark-ON, Light-ONResponse time1 msMaterial housingABSThread sizeOtherProduct Width (unpacked)11 mmProduct Height (unpacked)40 mmProduct Depth (unpacked)50 mmType of lightInfrared lightPower supply voltage12-24 VFeaturesTwo optical axisDegree of protection (IP)IP64
