E3Z-G61 2M E3Z 7187D E3ZG612MOMS OMRON Ecological cc Horseshoe 1 axis travelling.25mm NPN

E3Z-G61 2M

E3Z 7187D

E3ZG612MOMS

OMRON

1 Pcs.

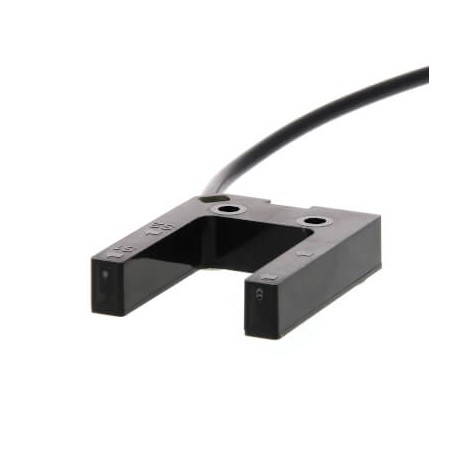

Ecological cc Horseshoe 1 axis travelling.25mm NPN Photoelectric sensor, slot housing, infrared LED, single through-beam, 25 mm, NPN, Light-ON/Dark-ON, 2 m cable

Automation > Fork light barrier
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron ecological cc horseshoe 1 axis travelling.25mm npn (E3Z-G61 2M) is a specialized photoelectric sensor applied in automated material handling equipment to track structural edges or verify component placement. These slot-type sensors facilitate precise positioning control by detecting when an object interrupts the internal optical path. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP64
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Special construction
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Cable
  • Type of light (EF004029): Infrared light
  • Type of switching output (EF003962): NPN
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeU-shapedSensing methodThrough-beam with slotSensing distance25 mmSetting methodManual adjustmentConnection methodCableCable length2 mOutput typeNPNOperation modeDark-ON, Light-ONResponse time1 msMaterial housingABSThread sizeOtherProduct Width (unpacked)11 mmProduct Height (unpacked)40 mmProduct Depth (unpacked)50 mmType of lightInfrared lightPower supply voltage12-24 VFeaturesTwo optical axisDegree of protection (IP)IP64
