> OMRON > Photoelectric sensors > E3Z > E3Z 7165C

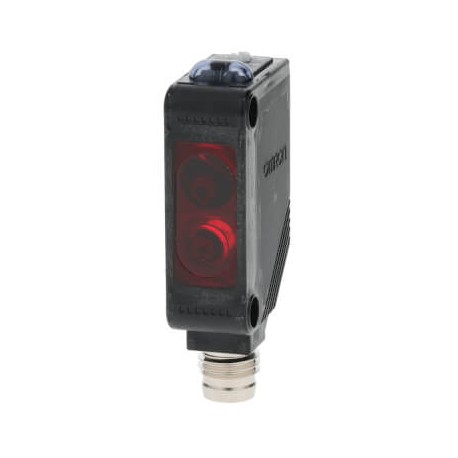

OMRON E3Z-L86 E3Z-L86 E3Z 7165C E3ZL86OMS OMRON Ecological cc 3h Slr 60-120mm PNP Spot reduc. M8 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3Z-L86 E3Z 7165C E3ZL86OMS OMRON Ecological cc 3h Slr 60-120mm PNP Spot reduc. M8

E3Z-L86

E3Z 7165C

E3ZL86OMS

OMRON

1 Pcs.

Ecological cc 3h Slr 60-120mm PNP Spot reduc. M8 Photoelectric sensor, rectangular housing, red LED, diffuse, narrow beam, 90 ± 30 mm, PNP, Light-ON/Dark-ON, M8 4-pin connector

Automation > Diffuse reflective photoelectric sensor
E3Z

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A photoelectric sensor, the Omron E3Z-L86 is utilized across industrial environments for non-contact object detection, positioning, and counting tasks. These devices project a light beam toward a target or reflector, translating interruptions in the beam into reliable electronic switching outputs for automated machinery. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP67
  • Material of optical surface (EF004134): Plastic
  • Housing material (EF001596): Plastic
  • Operation agent-safety class (EF003982): Safety class 3
  • Voltage type (EF000187): DC
  • Construction type housing (EF004008): Cuboid
  • Setting procedure (EF003994): Manual adjustment
  • Sensing mode (EF007503): Light-/dark switching
  • Type of switch function (EF003963): Programmable/configurable
  • Type of electric connection (EF003961): Connector M8
  • Type of light (EF004029): Polarized red light
  • Type of switching output (EF003962): PNP
  • With communication interface RS-485 (EF007314): No
  • With communication interface SSD (EF007315): No
  • With communication interface SSI (EF007316): No
  • Analogue output 0 mA ... 20 mA (EF006808): No

More info

▲
ShapeCuboidSensing methodDiffuse reflectiveSensing distance90 mmSensing distance (min.)60 mmSetting methodManual adjustmentConnection methodConnector M8 - 4 pinCable length0 mOutput typePNPOperation modeDark-ON, Light-ONResponse time1 msMaterial housingPBTThread sizeOtherProduct Width (unpacked)10.8 mmProduct Height (unpacked)31 mmProduct Depth (unpacked)20 mmType of lightPolarity free red lightSpot size2.5 mmPower supply voltage12-24 VFeaturesNarrow beamDegree of protection (IP)IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
