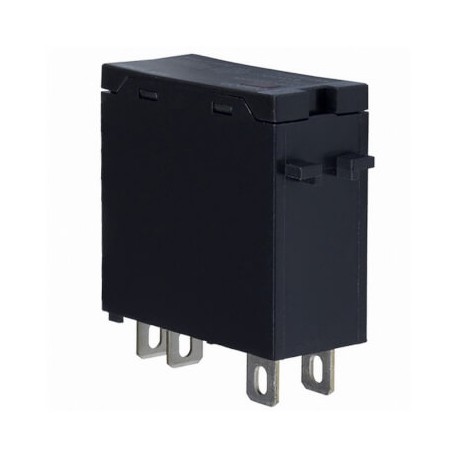

OMRON G3R-OA202SLN-UTU 5-24VDC G3R-OA202SLN-UTU 5-24VDC G3R 1129R G3ROA202SLNUTU524DC OMRON Output 2A 75-264vac fototriac UTU View larger
Images are for illustrative purposes only. Please refer to data sheet for details

G3R-OA202SLN-UTU 5-24VDC G3R 1129R G3ROA202SLNUTU524DC OMRON Output 2A 75-264vac fototriac UTU

G3R-OA202SLN-UTU 5-24VDC

G3R 1129R

G3ROA202SLNUTU524DC

OMRON

20 Pcs.

Output 2A 75-264vac fototriac UTU Solid state relay, plug-in, 5-pin, 1-pole, 2 A, 75-264 VAC

Automation > Solid state relay
G3R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron solid state relay, part number G3R-OA202SLN-UTU 5-24VDC, serves as a compact interface component for plugging into standard I/O sockets within automation and control architectures. Phototriac output designs safely couple low-current control logic with AC load circuits. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (operating voltage) (EF005294): AC
  • Voltage type for actuating (EF008242): AC
  • Switching at zero-crossing (EF011956): No
  • Modular version (EF001126): Yes
  • Rated operation current Ie at AC-1 (EF006069): 2 A
  • Number of phases (EF000351): 1
  • Rated operation current Ie at AC-3 (EF006070): 2 A
  • Rated control supply voltage DC (EF003980): 5 V
  • Operating voltage AC 50 Hz (EF008206): 4 V
  • Operating voltage AC 60 Hz (EF008207): 4 V

More info

▲
ApplicationInterfaceNumber of phases1Mounting methodWith plug-in socketTerminal typePlug-inComplete with socketLED indicatorRated operational voltage, AC100-240 VOperating voltage range, AC75-264 VRated operational voltage, DC75-264 VOperating voltage range, DC75-264 VRated operation current Ie at AC-12 AProduct Height (unpacked)29 mmProduct Width (unpacked)13 mmProduct Depth (unpacked)28 mmSupply voltage DC5-24 VControl current max.15 mAMust operate voltage max.4 VMust release voltage min.1 VMaximum operating temperature80 °CMinimum operating temperature-30 °CIsolationPhototriacSwitching at zero-crossing

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
